THT version -90°- unshielded

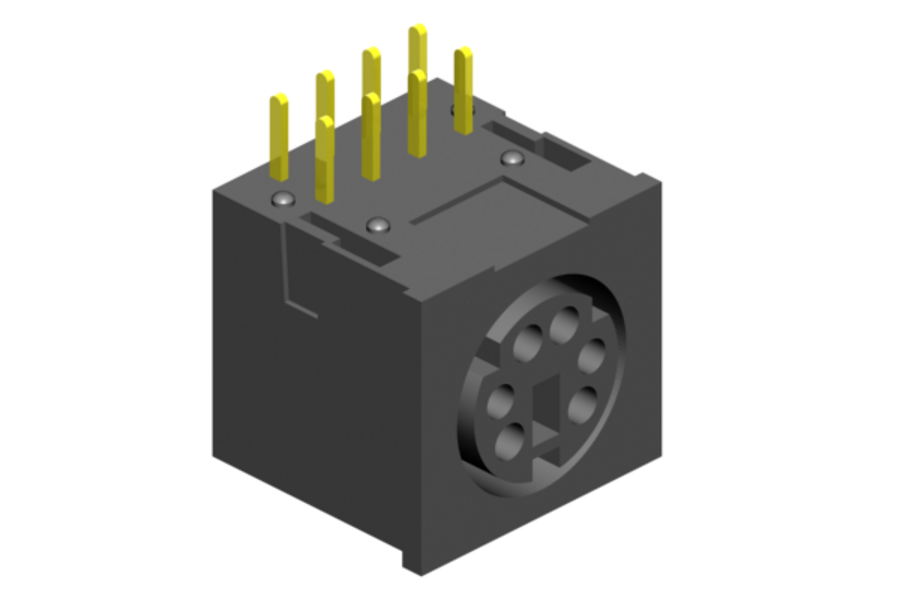

Series: MDJ-xxx-RN01-95
These Mini DIN connectors in Through-hole soldering technology are available in 3- to 9-pin unshielded, partially shielded or completely shielded.
Download
![THT version -90°- unshielded THT version -90°- unshielded](fileadmin/_processed_/3/2/csm_DS-06_6_J_2618b34650.png)
THT version -90°- shielded

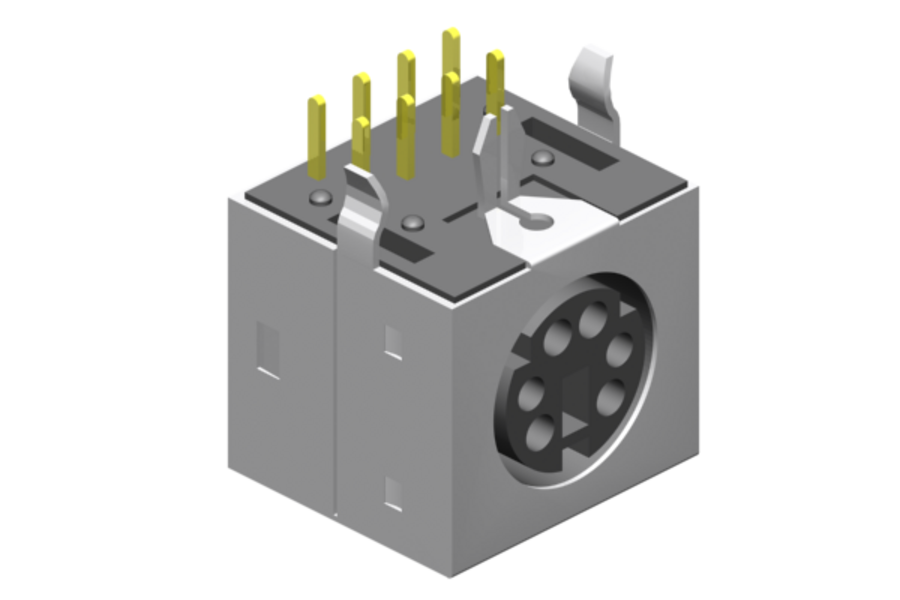

Series: MDJ-xxx-RXxx-xx
These Mini DIN connectors in Through-hole soldering technology are available in 3- to 9-pin unshielded, partially shielded or completely shielded.
Download
![THT version -90°- shielded THT version -90°- shielded](fileadmin/_processed_/f/a/csm_DS-06_6_K_f1996e721b.png)
SMT- & THT version -90°- Low Profile
Series: MDJ-xxx-RKLX/1-95

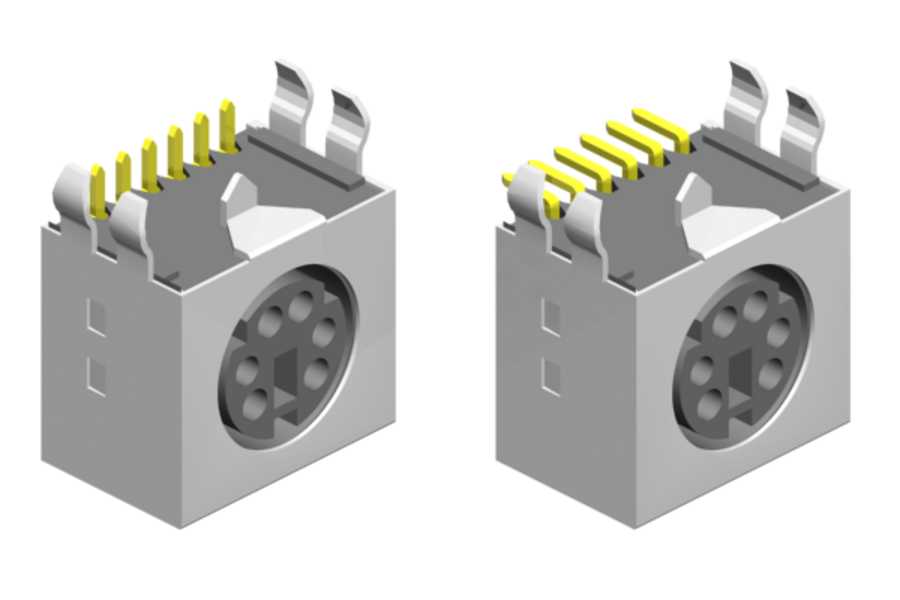

Low profile, only 8.60mm depth compared to 13.60mm of the standard type. SMT and Through-hole soldering type 4- and 6-pole completely shielded.
Download
![SMT- & THT version -90°- Low Profile SMT- & THT version -90°- Low Profile](fileadmin/_processed_/3/3/csm_DS-06_6_L_1c262a8d0c.png)
THT version -90°- Dual Port
Series: MDJ-606-XXxx-95

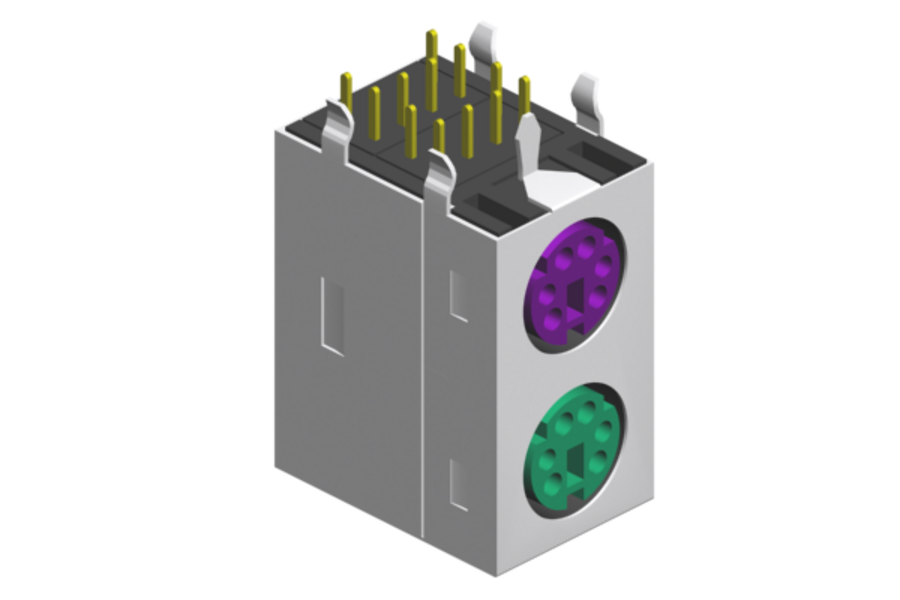

2 times 6-pole over top of each other. Fully shielded. Also available as PC99, color coded.
Download
![THT version -90°- Dual Port THT version -90°- Dual Port](fileadmin/_processed_/c/b/csm_DS-06_6_M_5a512e1a74.png)

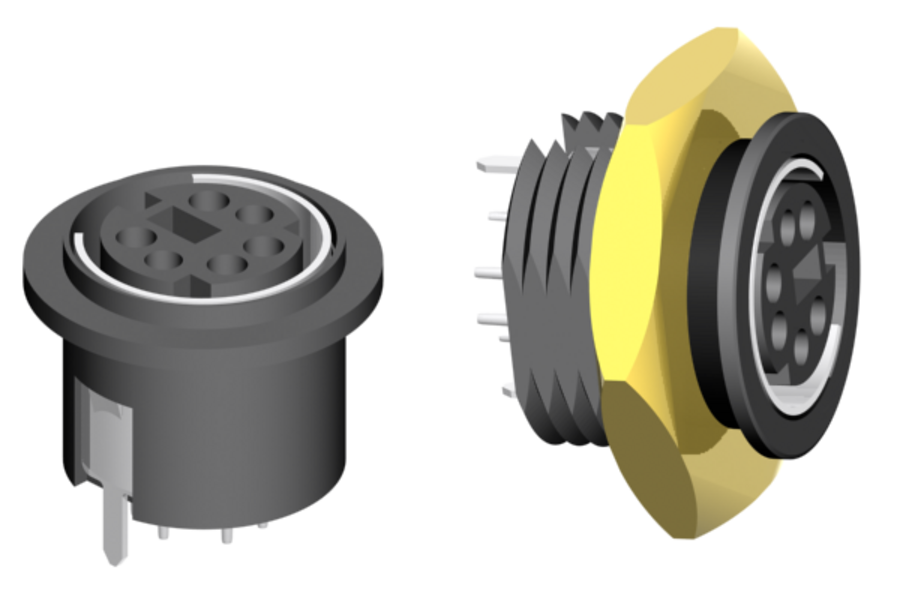

THT version - vertical & "wall mounting"
Only 3-, 4-, 5-, 6- and 8-pin available. The "wall mounting" version is supplied with a corresponding nut set.
![THT version - vertical & "wall mounting" THT version - vertical & "wall mounting"](fileadmin/_processed_/9/4/csm_DS-06_6_N_67c034efc8.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Vertical THT | MDJ-xxx-SN01-AGZ | |||
Wall mounting THT | MDJ-xxx-SS01-99 |
Plugs

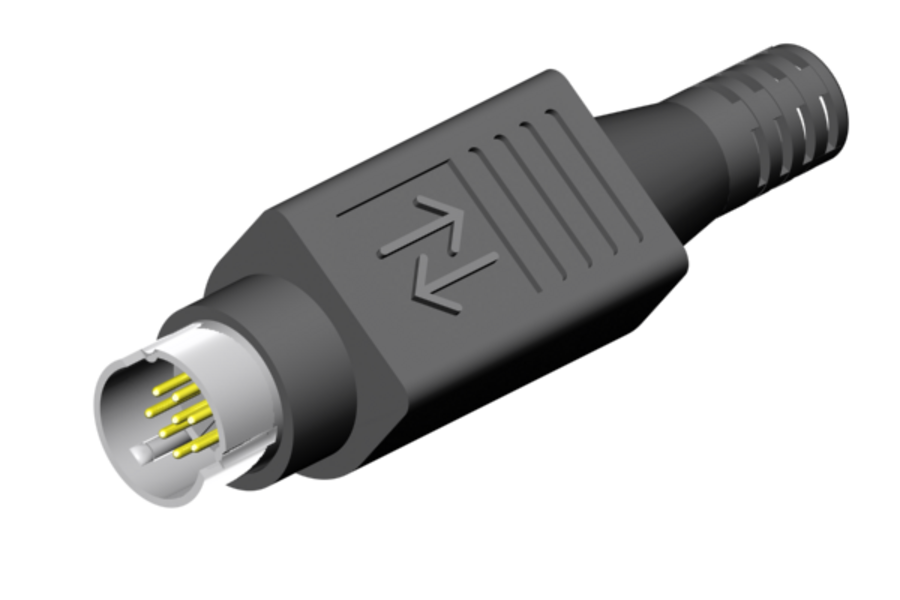

Series: MDP-xxx-XX01-xx
3 to 8-pin connector for self-assembly. In standard (male/female) and "Quick Lock" versions. On request also available with cables assembled.
Download
![Plugs Plugs](fileadmin/_processed_/6/a/csm_DS-06_6_O_e1d8e3f43b.png)
