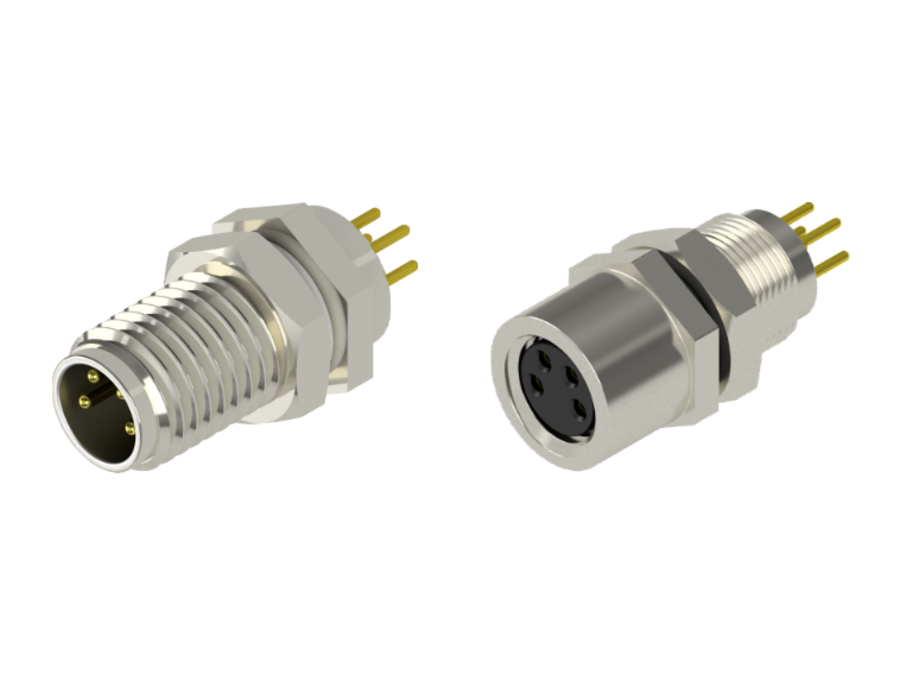

M8 Circular Connector A-Coding Through-hole soldering (THT)
Through-hole soldering (THT) version in "female" and "male" for mounting on a PCB.
Available in 3- and 4-pin A-Coding. More pin counts and types on request.
![M8 Circular Connector A-Coding Through-hole soldering (THT) M8 Circular Connector A-Coding Through-hole soldering (THT)](fileadmin/_processed_/7/f/csm_M08-XA04-TV_206c64e832.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
3-pin male | M08-MA03-TVFP-55/00 | |||
4-pin female | M08-FA04-TVRP-55/00 | |||
4-pin male | M08-MA04-TVFP-55/00 |

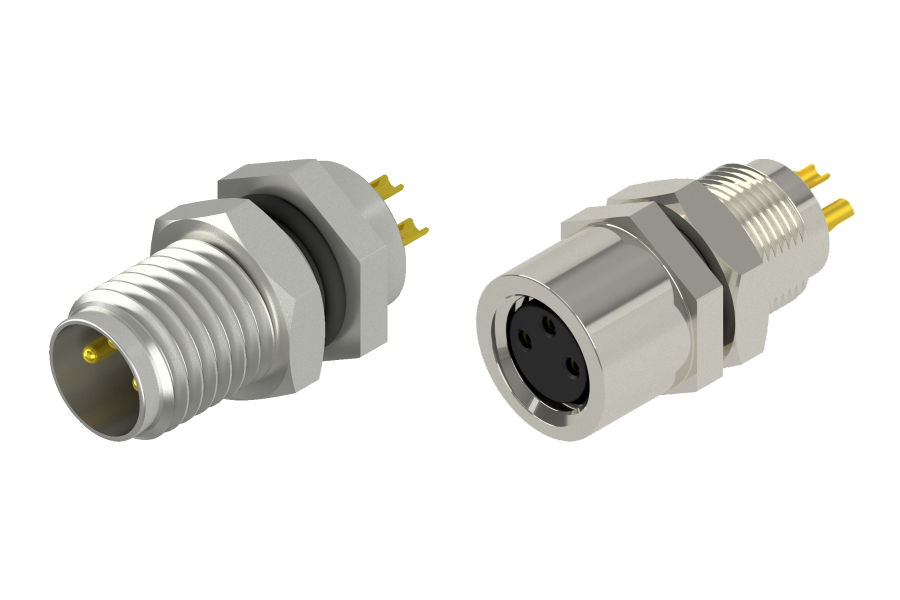

M8 Circular Connector A-Coding in "solder cup" version ( for hand soldering )
Hand soldering version in "female" and "male" for front or rear mounting on a panel.
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
Available in 3-pin A-Coding. More pin counts and types on request.
![M8 Circular Connector A-Coding in "solder cup" version ( for hand soldering ) M8 Circular Connector A-Coding in "solder cup" version ( for hand soldering )](fileadmin/_processed_/b/2/csm_M08-XA03-CV_0efe586a59.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
3-pin female | M08-FA03-CVRP-55/00 | |||
3-pin male | M08-MA03-CVFP-55/00 |

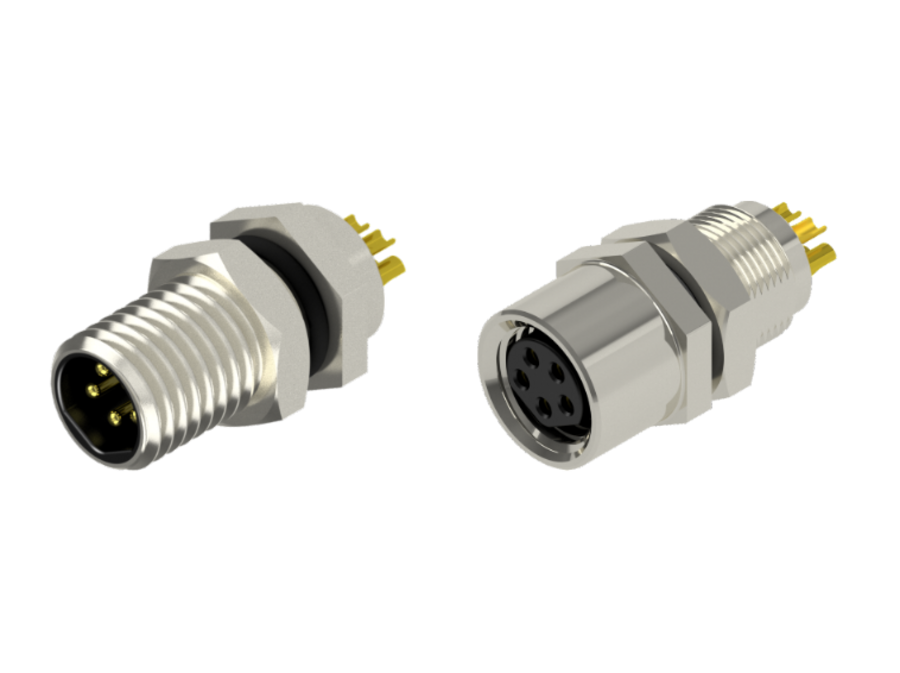

M8 Circular Connector B-Coding in "solder cup" version ( for hand soldering )
Hand soldering version in "female" and "male" for front or rear mounting on a panel.
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
Available in 5-pin B-Coding. More pin counts and types on request.
![M8 Circular Connector B-Coding in "solder cup" version ( for hand soldering ) M8 Circular Connector B-Coding in "solder cup" version ( for hand soldering )](fileadmin/_processed_/b/9/csm_M08-XB05-CV_45f198411d.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
5-pin female | M08-FB05-CVRP-55/00 | |||
5-pin male | M08-MB05-CVFP-55/00 |

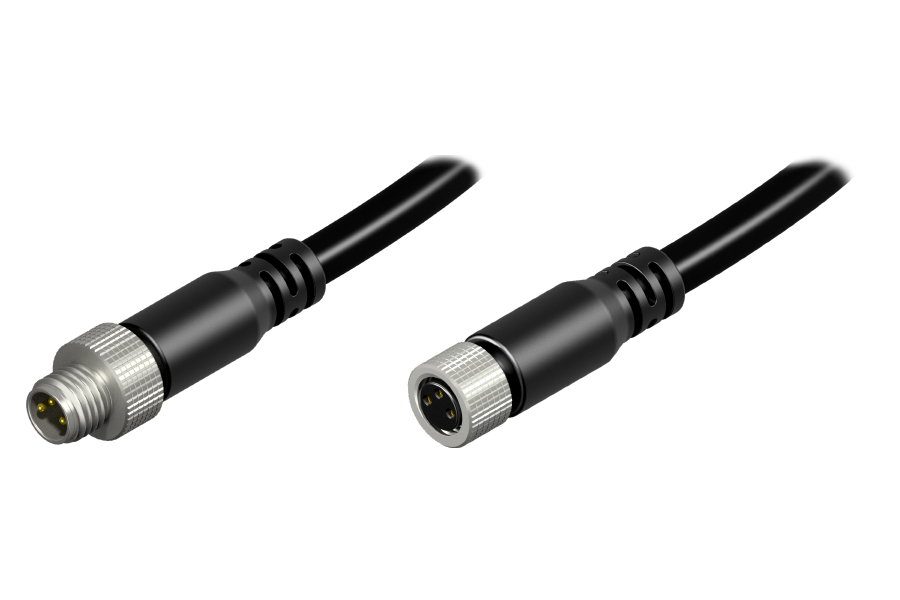

M8 Cable Assembly A-Coding (3-pin)
M8 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 3-pin A-Coding. More pin counts and types on request.
![M8 Cable Assembly A-Coding (3-pin) M8 Cable Assembly A-Coding (3-pin)](fileadmin/_processed_/2/7/csm_MCC-M08-XA03_8db3b17dfb.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
3-pin female | MCC-M08FA03/M08FA03-xxxx-00 | |||
3-pin male | MCC-M08MA03/M08MA03-xxxx-00 |

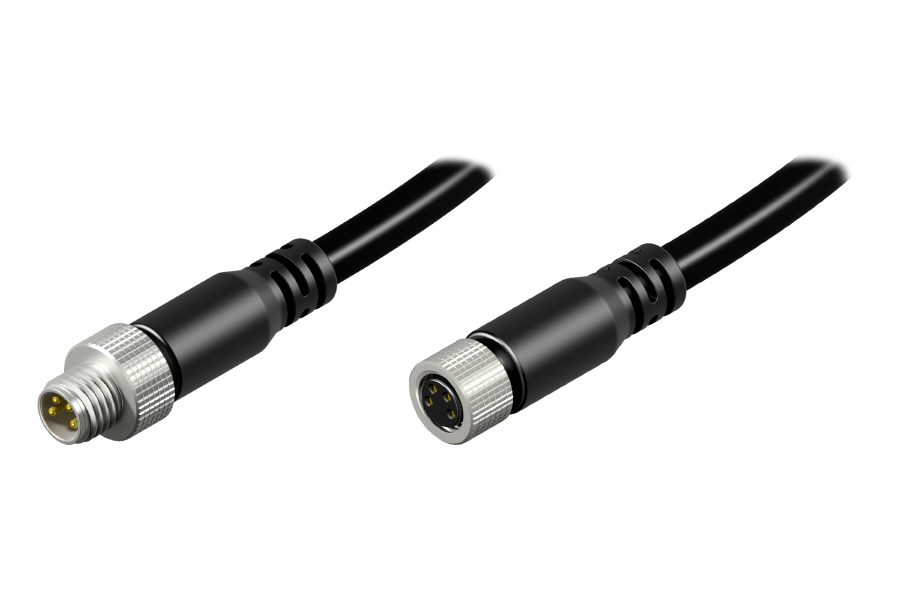

M8 Cable Assembly A-Coding (4-pin)
M8 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 4-pin A-Coding. More pin counts and types on request.
![M8 Cable Assembly A-Coding (4-pin) M8 Cable Assembly A-Coding (4-pin)](fileadmin/_processed_/1/c/csm_MCC-M08-XA04_8276fd262c.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female | MCC-M08FA04/M08FA04-xxxx-00 | |||
4-pin male | MCC-M08MA04/M08MA04-xxxx-00 |

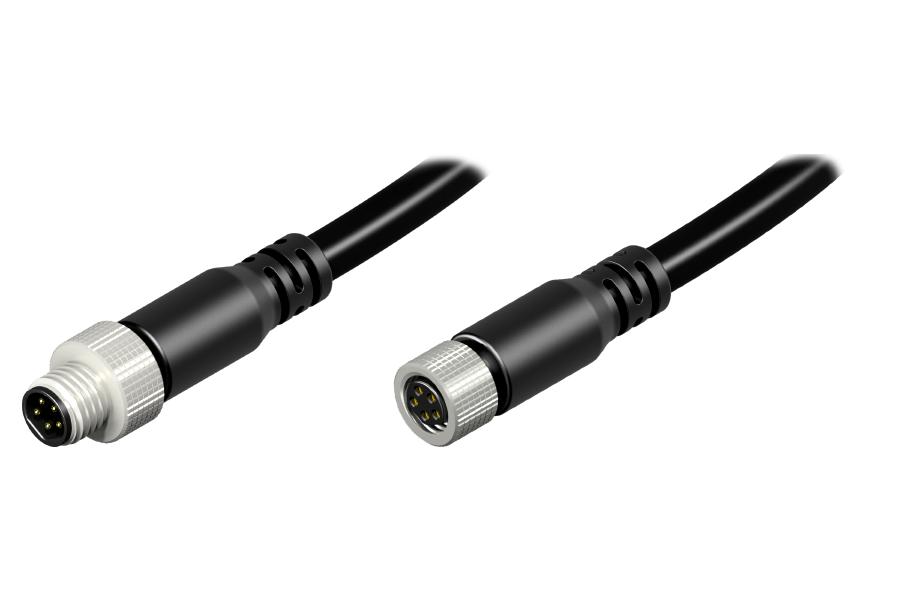

M8 Cable Assembly B-Coding (5-pin)
M8 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 5-pin B-Coding. More pin counts and types on request.
![M8 Cable Assembly B-Coding (5-pin) M8 Cable Assembly B-Coding (5-pin)](fileadmin/_processed_/6/6/csm_MCC-M08-XB05_157e9356d5.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
5-pin female | MCC-M08FB05/M08FB05-xxxx-00 | |||
5-pin male | MCC-M08MB05/M08MB05-xxxx-00 |
