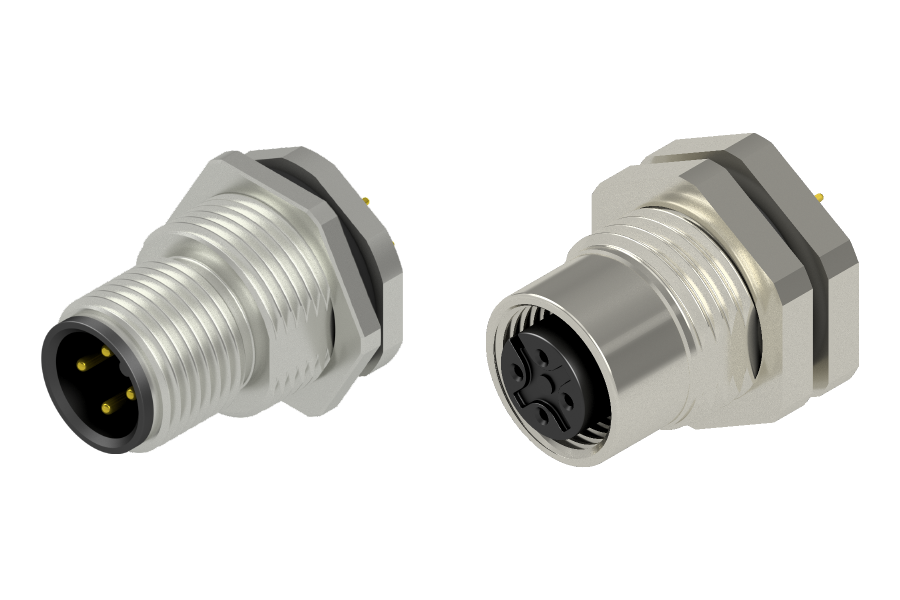

M12 Circular Connector A-Coding Through-hole soldering (THT)
Through-hole soldering (THT) version in "female" and "male" for mounting on a PCB.
Available in 4-pin A-Coding. More pin counts and types on request.
![M12 Circular Connector A-Coding Through-hole soldering (THT) M12 Circular Connector A-Coding Through-hole soldering (THT)](fileadmin/_processed_/7/d/csm_M12-XA04-TVFP_17a482377a.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female | M12-FA04-TVFP-55/00 | |||
4-pin male | M12-MA04-TVFP-55/00 |

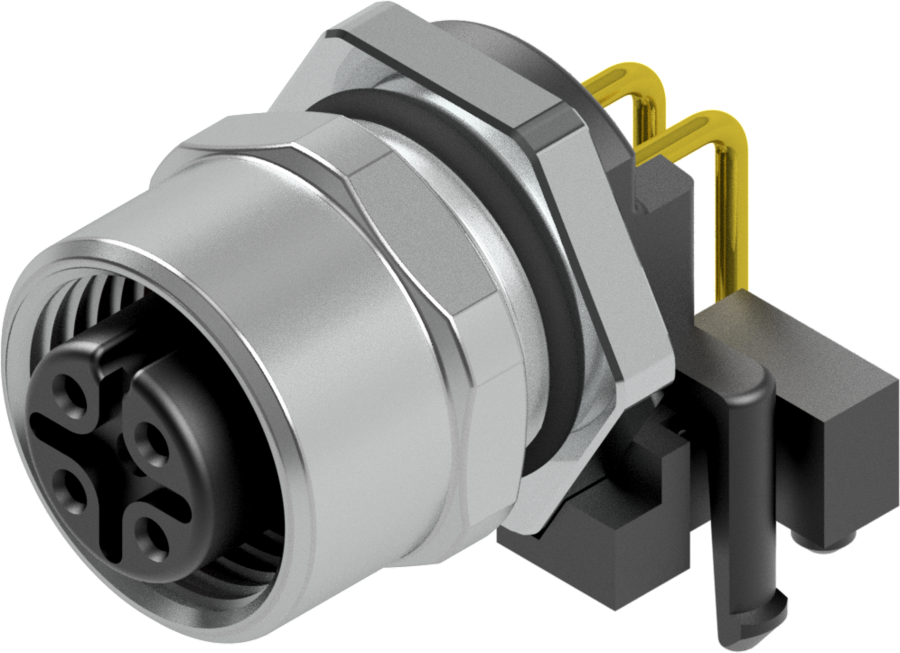

M12 Circular Connector A-Coding Through-hole soldering (THT) - right angle
Through-hole soldering (THT) version in "female" right angle for mounting on a PCB.
Available in 4-/5- and 8-pin A-Coding. More pin counts and types on request.
![M12 Circular Connector A-Coding Through-hole soldering (THT) - right angle M12 Circular Connector A-Coding Through-hole soldering (THT) - right angle](fileadmin/_processed_/b/e/csm_M12-FA05-THFP_da284a714d.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female | M12-FA04-THFP-55/X00 | |||
5-pin female | M12-FA05-THFP-55/X00 | |||
8-pin female | M12-FA08-THFP-55/X00 |

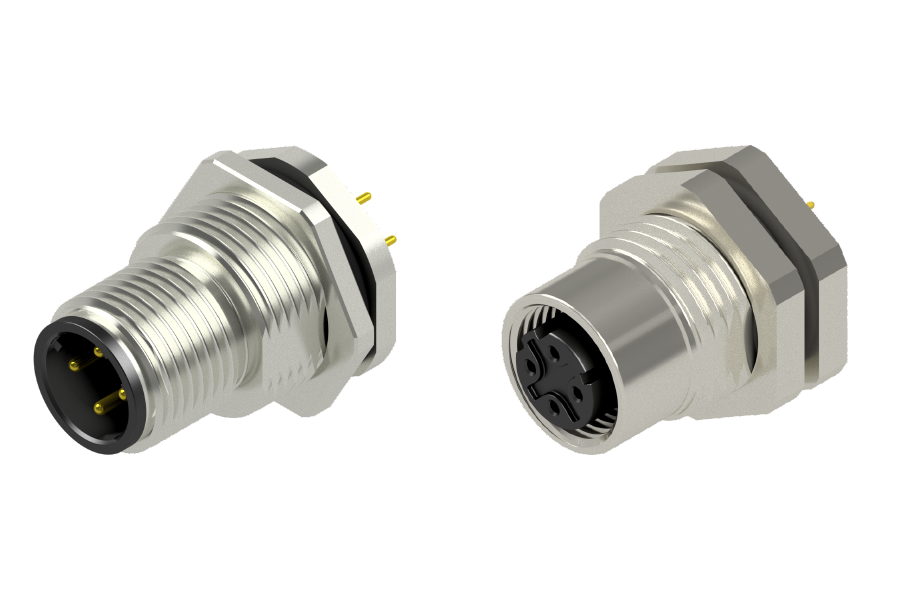

M12 Circular Connector D-Coding Through-hole soldering (THT)
Through-hole soldering (THT) version in "female" and "male" for mounting on a PCB.
Available in 4-pin D-Coding. More pin counts and types on request.
![M12 Circular Connector D-Coding Through-hole soldering (THT) M12 Circular Connector D-Coding Through-hole soldering (THT)](fileadmin/_processed_/5/e/csm_M12-XD04-TVFP_fb689f4204.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female (Front Panel Mount) | M12-FD04-TVFP-55/00 | |||
4-pin female (Rear Panel Mount) | M12-FD04-TVRP-55/00 | |||
4-pin male | M12-MD04-TVFP-55/00 |

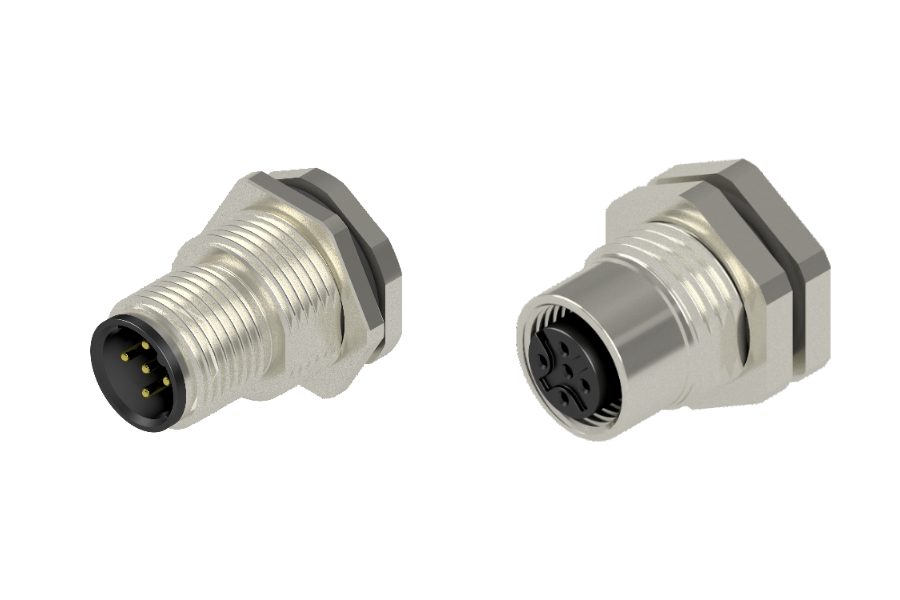

M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering )
Hand soldering version in "female" and "male" for front or rear mounting on a panel.
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
Available in 5-pin A-Coding. More pin counts and types on request.
![M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering ) M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering )](fileadmin/_processed_/b/f/csm_M12-XA05-CVFP_4251d76512.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
5-pin female (Front Panel Mount) | M12-FA05-CVFP-55/00 | |||
5-pin male (Front Panel Mount) | M12-MA05-CVFP-55/00 | |||
5-pin male (Rear Panel Mount) | M12-MA05-CVRP-55/00 |

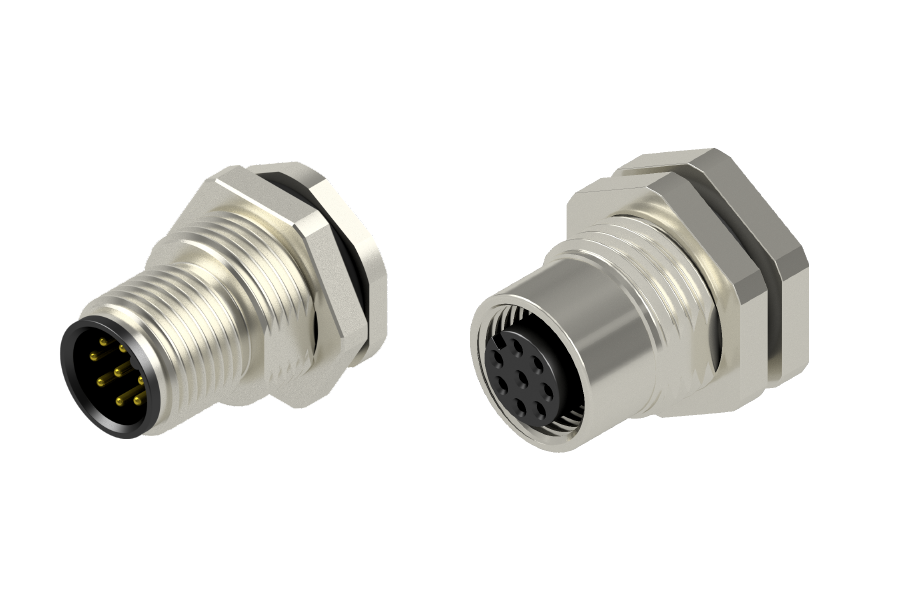

M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering )
Hand soldering version in "female" and "male" for front or rear mounting on a panel.
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
Available in 8-pin A-Coding. More pin counts and types on request.
![M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering ) M12 Circular Connector A-Coding in "solder cup" version ( for hand soldering )](fileadmin/_processed_/1/e/csm_M12-XA08-CVFP_6dd12fa15c.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
8-pin female | M12-FA08-CVFP-55/00 | |||
8-pin male | M12-MA08-CVFP-55/00 |

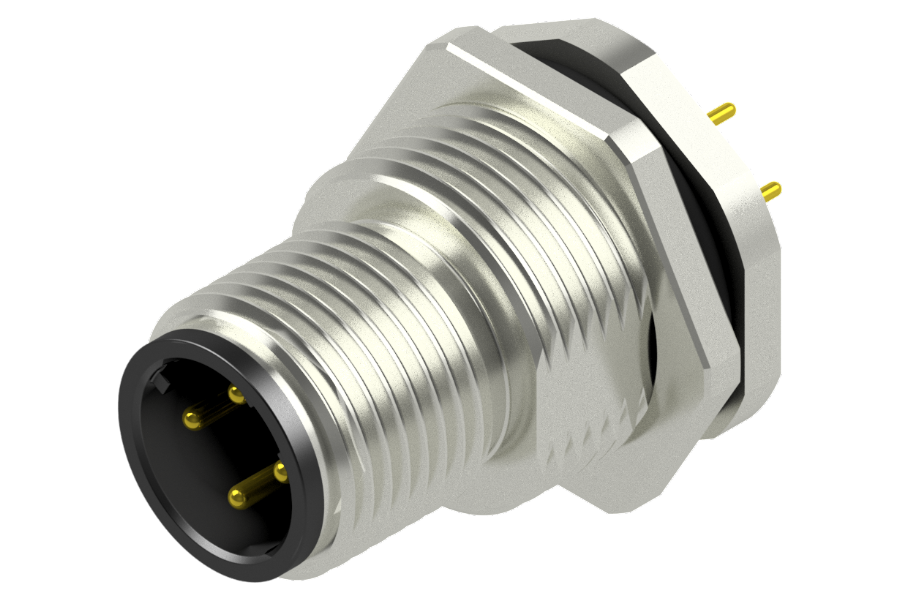

M12 Circular Connector A-Coding Through-hole soldering (THT)
Through-hole soldering (THT) version in "female" and "male" for mounting on a PCB.
Available in 5-pin A-Coding. More pin counts and types on request.
![M12 Circular Connector A-Coding Through-hole soldering (THT) M12 Circular Connector A-Coding Through-hole soldering (THT)](fileadmin/_processed_/5/f/csm_M12-MA05-TVFP_2b712aa381.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
5-pin female | M12-FA05-TVFP-55/00 | |||
5-pin male | M12-MA05-TVFP-55/00 |

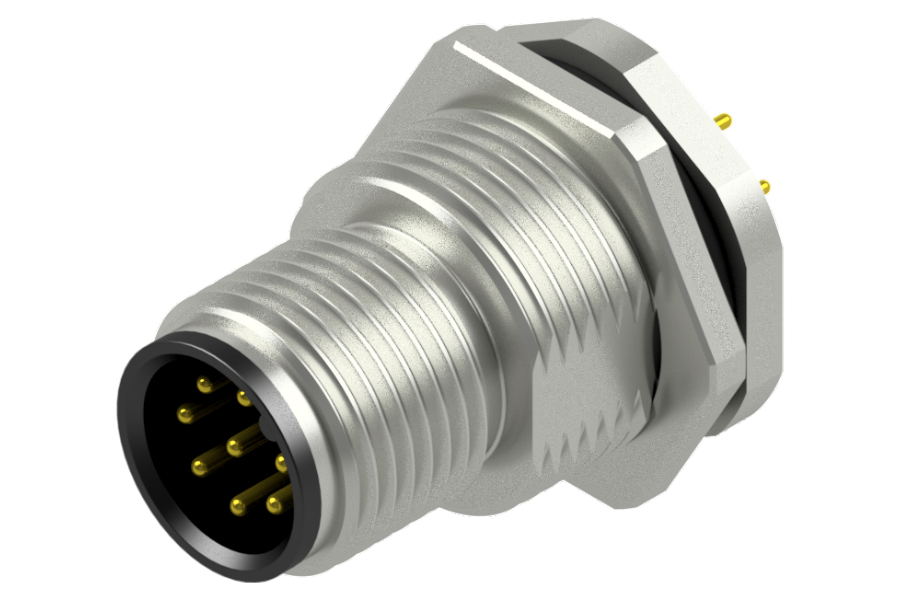

M12 Circular Connector A-Coding Through-hole soldering (THT)
Series: M12-MA08-TVFP-55/00
Through-hole soldering (THT) version in "male" for mounting on a PCB.
Available in 8-pin A-Coding. More pin counts and types on request.
Download
![M12 Circular Connector A-Coding Through-hole soldering (THT) M12 Circular Connector A-Coding Through-hole soldering (THT)](fileadmin/_processed_/3/8/csm_M12-MA08-TVFP_e463b999a5.png)

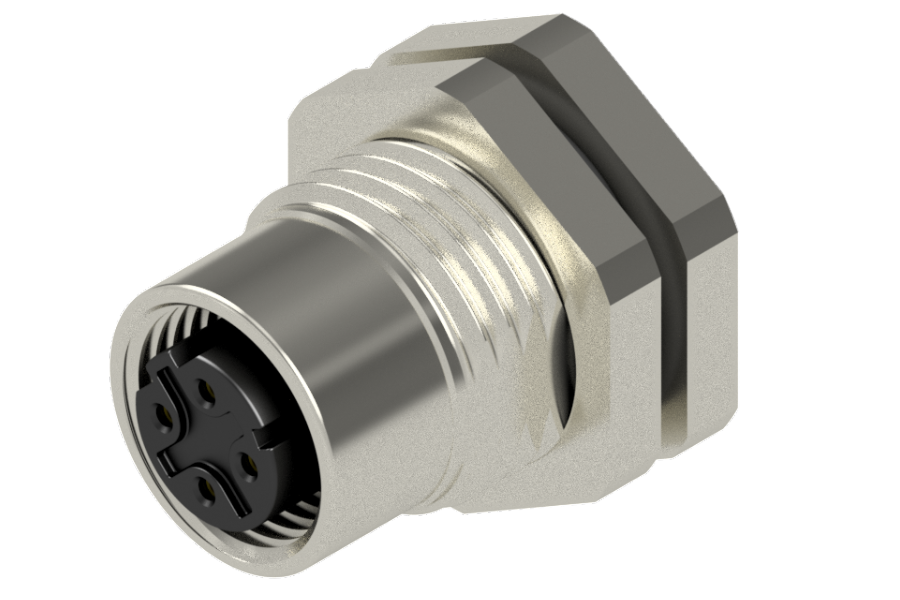

M12 Circular Connector D-Coding in "solder cup" version ( for hand soldering )
Hand soldering version in "female" for front or rear mounting on a panel.
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
Available in 4-pin D-Coding. More pin counts and types on request.
![M12 Circular Connector D-Coding in "solder cup" version ( for hand soldering ) M12 Circular Connector D-Coding in "solder cup" version ( for hand soldering )](fileadmin/_processed_/a/5/csm_M12-FD04-CVFP_08d1ccb580.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female (Front Panel Mount) | M12-FD04-CVFP-55/00 | |||
4-pin female (Rear Panel Mount) | M12-FD04-CVRP-55/00 |
M12 Circular Connector D-Coding Through-hole soldering (THT) - right angle
Through-hole soldering (THT) version in "female" right angle for mounting on a PCB.
Available in 4- and 5-pin D-Coding. More pin counts and types on request.
![M12 Circular Connector D-Coding Through-hole soldering (THT) - right angle M12 Circular Connector D-Coding Through-hole soldering (THT) - right angle](fileadmin/_processed_/c/d/csm_M12-FD05-THFP_409b60e15a.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female | M12-FD04-THFP-55/X00 | |||
5-pin female | M12-FD05-THFP-55/00 |

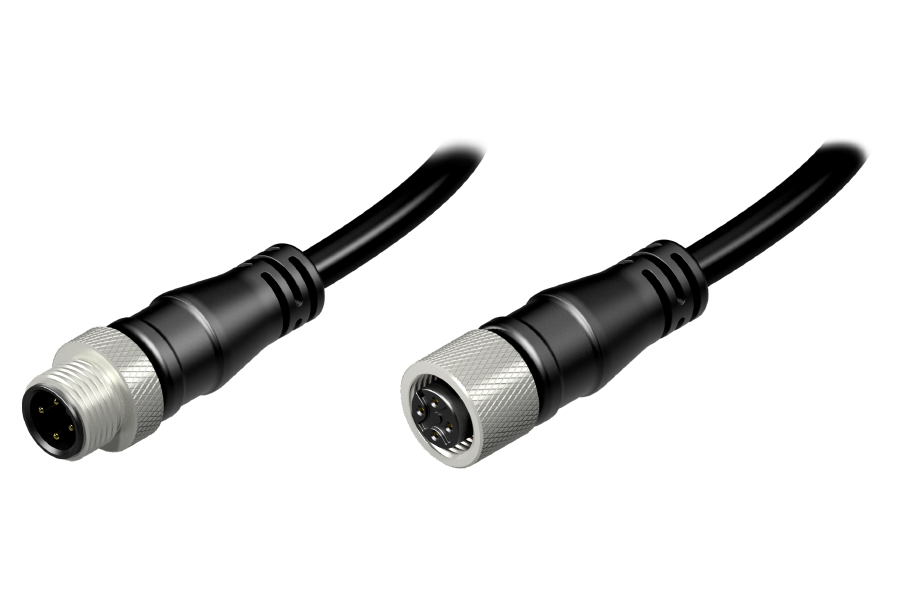

M12 Cable Assembly A-Coding (4-pin)
M12 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 4-pin A-Coding. More pin counts and types on request.
![M12 Cable Assembly A-Coding (4-pin) M12 Cable Assembly A-Coding (4-pin)](fileadmin/_processed_/a/c/csm_MCC-M12-XA04_a337c0bcde.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
4-pin female | MCC-M12FA04/M12FA04-xxxx-00 | |||
4-pin male | MCC-M12MA04/M12MA04-xxxx-00 |

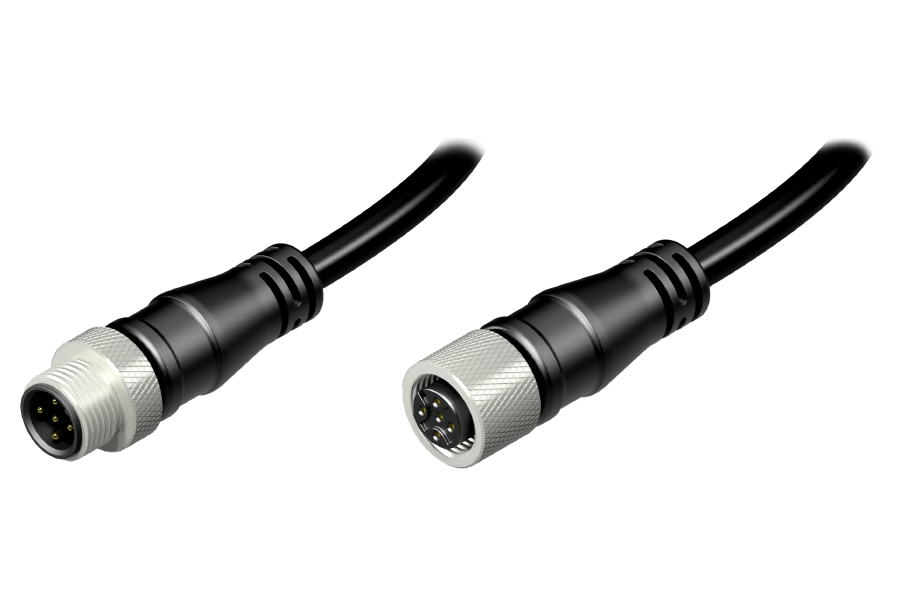

M12 Cable Assembly A-Coding (5-pin)
M12 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 5-pin A-Coding. More pin counts and types on request.
![M12 Cable Assembly A-Coding (5-pin) M12 Cable Assembly A-Coding (5-pin)](fileadmin/_processed_/2/0/csm_MCC-M12-XA05_8c78d75ad7.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
5-pin female | MCC-M12FA05/M12FA05-xxxx-00 | |||
5-pin male | MCC-M12MA05/M12MA05-xxxx-00 |

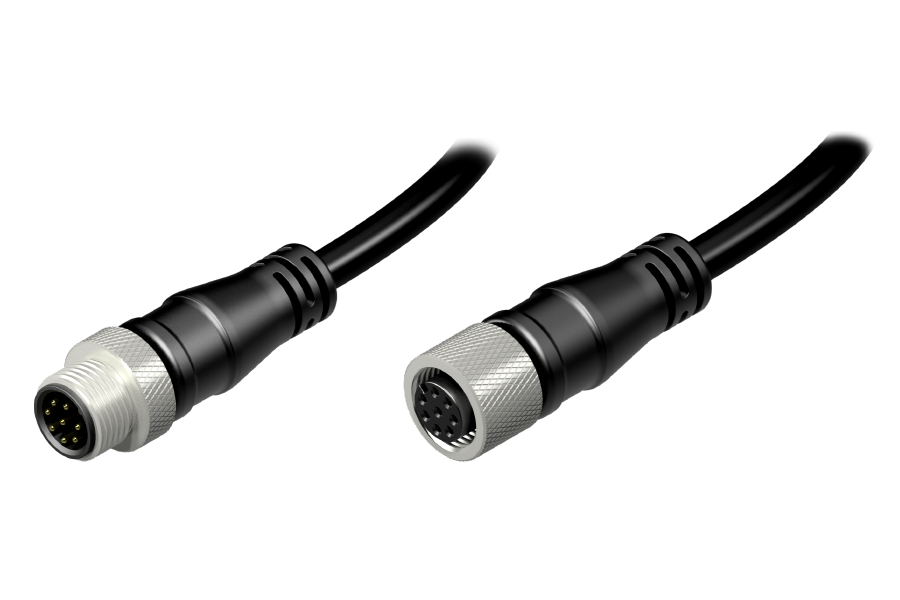

M12 Cable Assembly A-Coding (8-pin)
M12 cable assembled to your needs. Standard as "female" and "male" extension cable but also as "female" / "female" and "male" / "male".
Available in 8-pin A-Coding. More pin counts and types on request.
![M12 Cable Assembly A-Coding (8-pin) M12 Cable Assembly A-Coding (8-pin)](fileadmin/_processed_/a/c/csm_MCC-M12-XA08_00843bca16.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
8-pin female | MCC-M12FA08/M12FA08-xxxx-00 | |||
8-pin male | MCC-M12MA08/M12MA08-xxxx-00 |

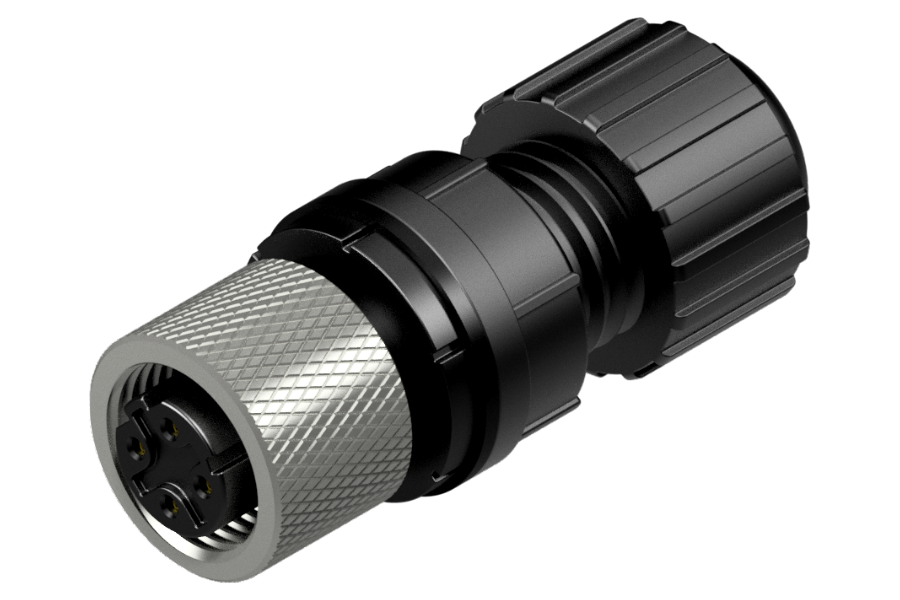

M12 Circular Connector D-Coding as "field assembly" version
Series: M12-FD04-CVFA-55/00
M12 Circular Connector as "field assembly" version.
Available in female 4-pin D-Coding. More pin counts and types on request.
Download
![M12 Circular Connector D-Coding as "field assembly" version M12 Circular Connector D-Coding as "field assembly" version](fileadmin/_processed_/e/d/csm_M12-FD04-CVFA_fcc8e37e0a.png)

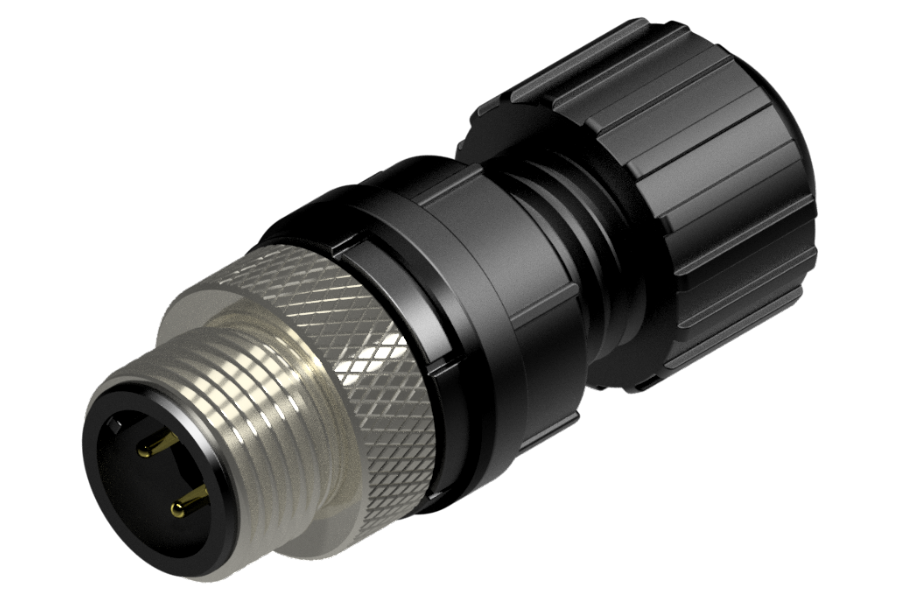

M12 Circular Connector D-Coding as "field assembly" version
Series: M12-MD04-CVFA-55/00
M12 Circular Connector as "field assembly" version.
Available in male 4-pin D-Coding. More pin counts and types on request.
Download
![M12 Circular Connector D-Coding as "field assembly" version M12 Circular Connector D-Coding as "field assembly" version](fileadmin/_processed_/c/2/csm_M12-MD04-CVFA_225beff15f.png)

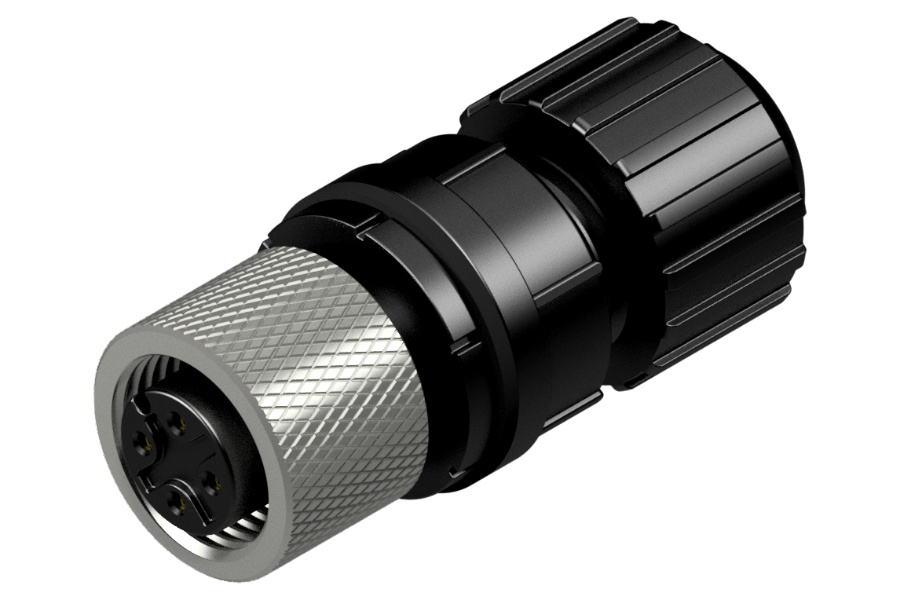

M12 Circular Connector A-Coding as "field assembly" version
Series: M12-FA05-CVFA-55/00
M12 Circular Connector as "field assembly" version.
Available in female 5-pin A-Coding. More pin counts and types on request.
Download
![M12 Circular Connector A-Coding as "field assembly" version M12 Circular Connector A-Coding as "field assembly" version](fileadmin/_processed_/f/4/csm_M12-FA05-CVFA_3c7c8670ca.png)
