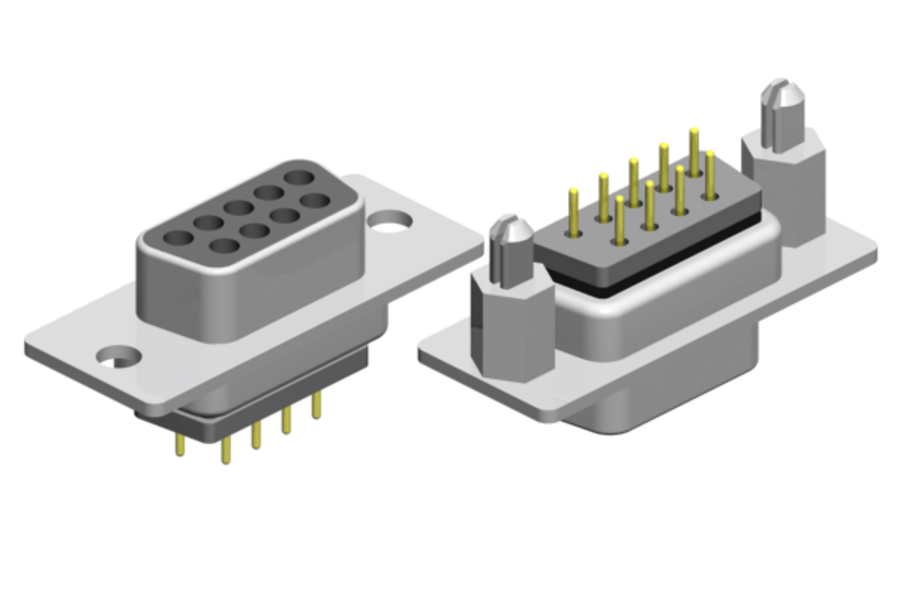

THT version -vertical- standard height
Through-hole soldering version in "female" and "male", vertical with a board spacing of 6.30mm or 7.00mm (with distance bolts) up to the mounting collar.
Available in 9-, 15-, 25- and 37-pin
![THT version -vertical- standard height THT version -vertical- standard height](fileadmin/_processed_/4/7/csm_DS-06_4_E_5e41dd8a7d.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-S111-xx/FXXX | |||
Male | SDM-xxx-S111-xx/FXXX |

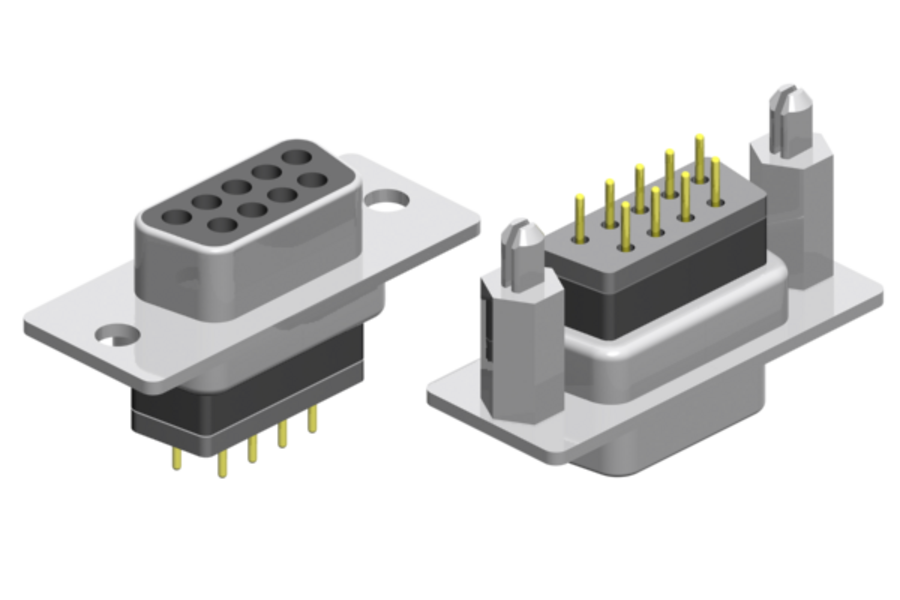

THT version -vertical- "raised" height
Through-hole soldering in "female" and "male", vertical with a board spacing of 12.70mm and 14.50mm up to the mounting collar.
Available with and without spacing bolts.
Available in 9-, 15-, 25- and 37-pin
![THT version -vertical- "raised" height THT version -vertical- "raised" height](fileadmin/_processed_/a/1/csm_DS-06_4_F_f1aff1a912.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-B111-xx/FXXX | |||
Male | SDM-xxx-B111-xx/FXXX |

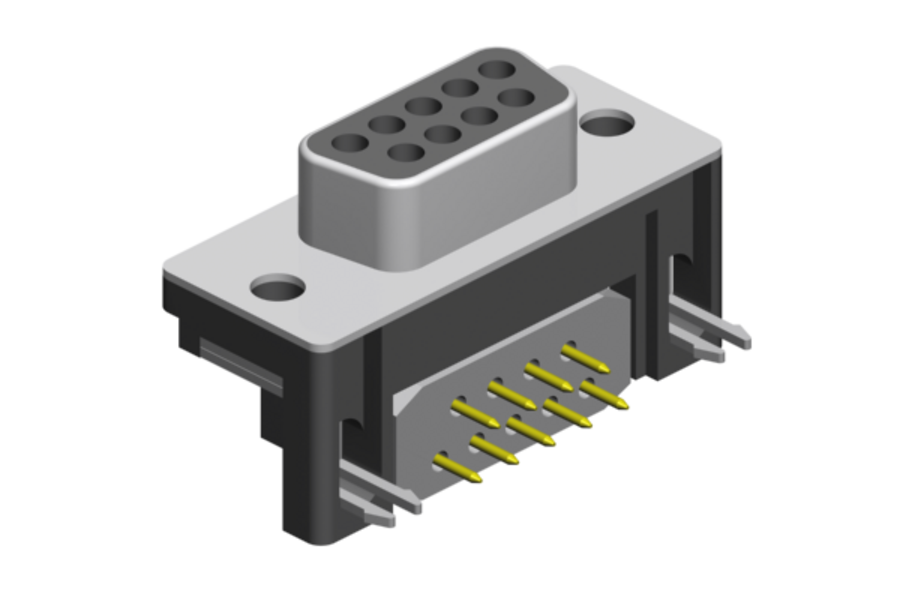

THT version - 90° - closed form US-Style 8.08mm footprint type
Series: SFX-xxx-N900-xx/XX
Through-hole soldering in "female" and "male", horizontal. US style with 8.08mm footprint type.
Available with "grounding board lock clip" or "grounding strap" with mounting hole.
Version
9-pin15-pin
25-pin
37-pin
Download
Datasheets
![THT version - 90° - closed form US-Style 8.08mm footprint type THT version - 90° - closed form US-Style 8.08mm footprint type](fileadmin/_processed_/1/d/csm_DS-06_4_G_3855e5b7a6.png)
