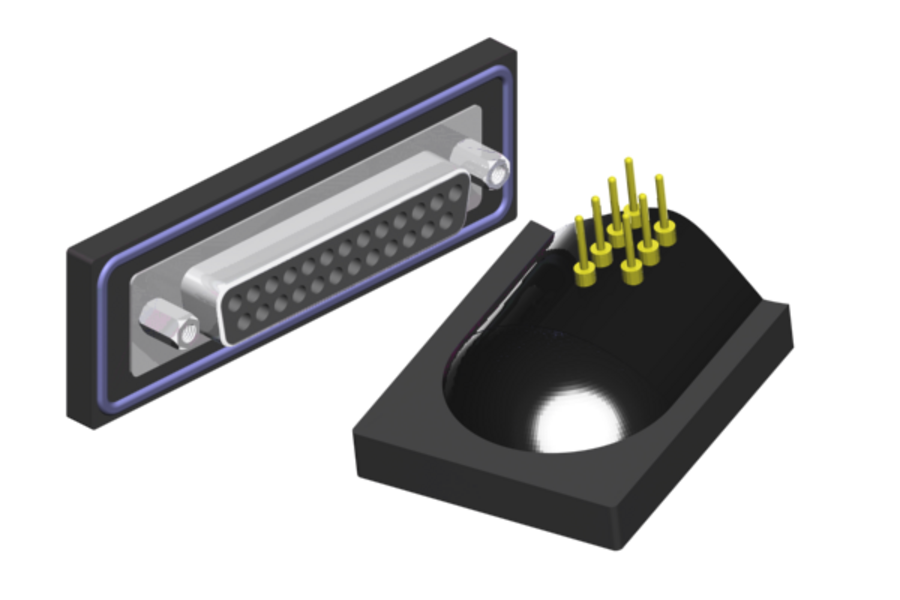

THT version -vertical- with board lock
Through-hole soldering in "male" and "female" with "board lock".
![THT version -vertical- with board lock THT version -vertical- with board lock](fileadmin/_processed_/e/6/csm_SDFSIP11T_f9fc21cb3e.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-SIP11-55/BRTX | |||
Male | SDM-xxx-SIP11-55/BRTXX |
THT version -vertical- without board lock
Through-hole soldering in "male" and "female" without "board lock".
![THT version -vertical- without board lock THT version -vertical- without board lock](fileadmin/_processed_/e/6/csm_SDFSIP11T_f9fc21cb3e.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-SIP11-55/TXX | |||
Male | SDM-xxx-SIP11-55/TXX |

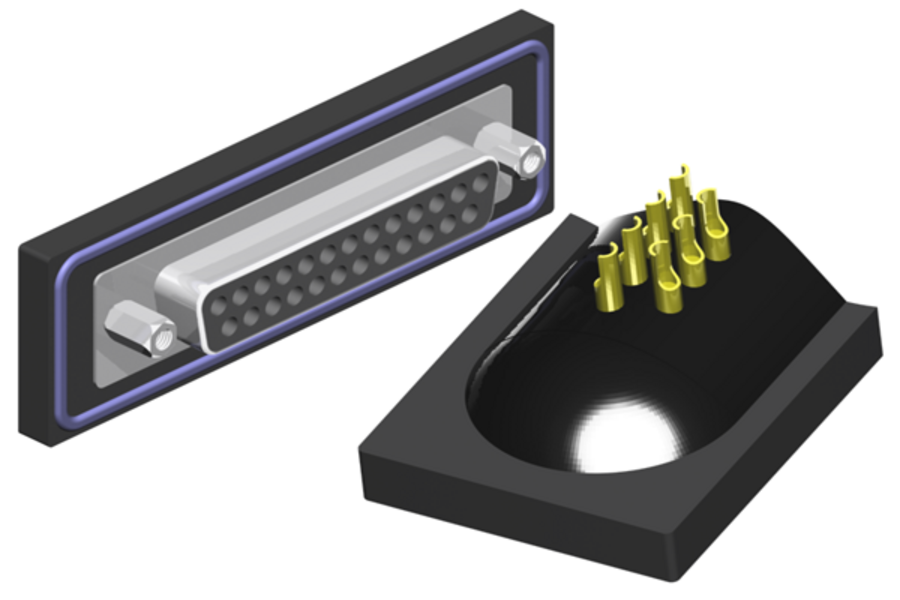

"solder cup" version ( for hand soldering )
Hand soldering version in "female" and "male".
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
!["solder cup" version ( for hand soldering ) "solder cup" version ( for hand soldering )](fileadmin/_processed_/6/c/csm_SDFSIP01T_cfa97878eb.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-SIP01-55/TXX | |||
Male | SDM-xxx-SIP01-55/TXX |

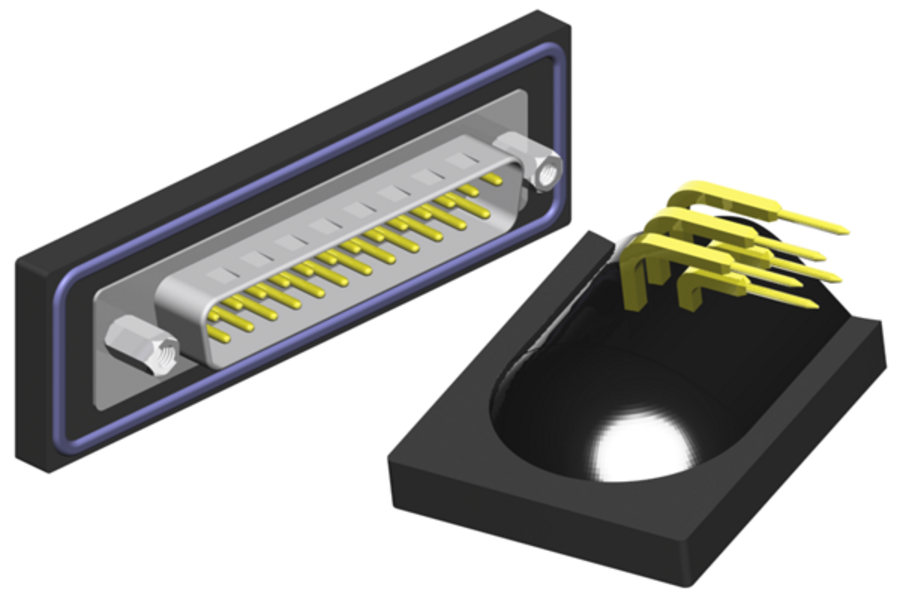

THT version -90°- standard without mounting bracket
Through-hole version "female" and "male".
![THT version -90°- standard without mounting bracket THT version -90°- standard without mounting bracket](fileadmin/_processed_/6/9/csm_SDMNIPL2_11384892cd.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-NIP7-55/L2TXX | |||
Male | SDM-xxx-NIP7-55/L2TX |

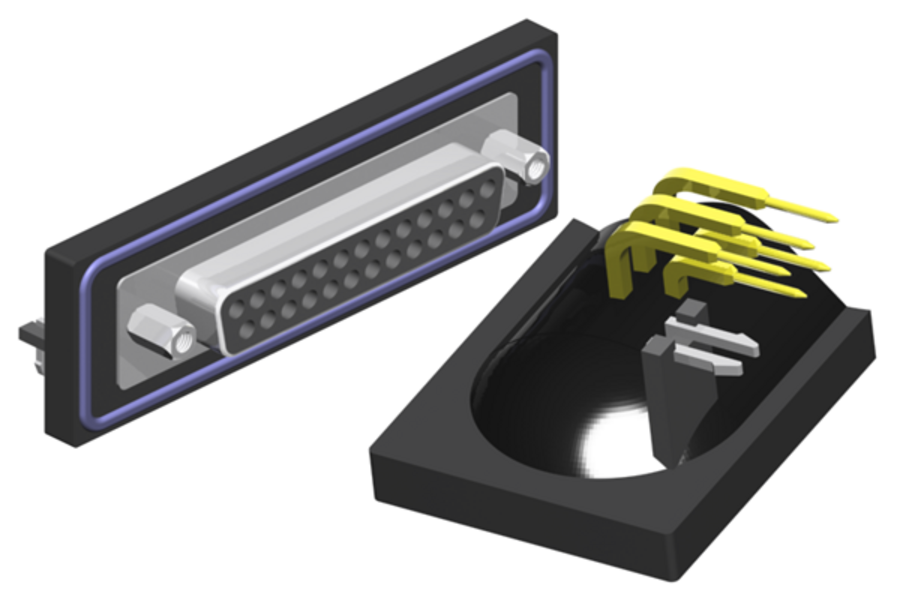

THT version -90°- standard with mounting brackets
Through-hole version "female" and "male"
![THT version -90°- standard with mounting brackets THT version -90°- standard with mounting brackets](fileadmin/_processed_/b/a/csm_SDFNIP7B2_2d0a15d287.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SDF-xxx-NIP7-55/B2TXX | |||
Male | SDM-xxx-NIP7-55/B2TXX |

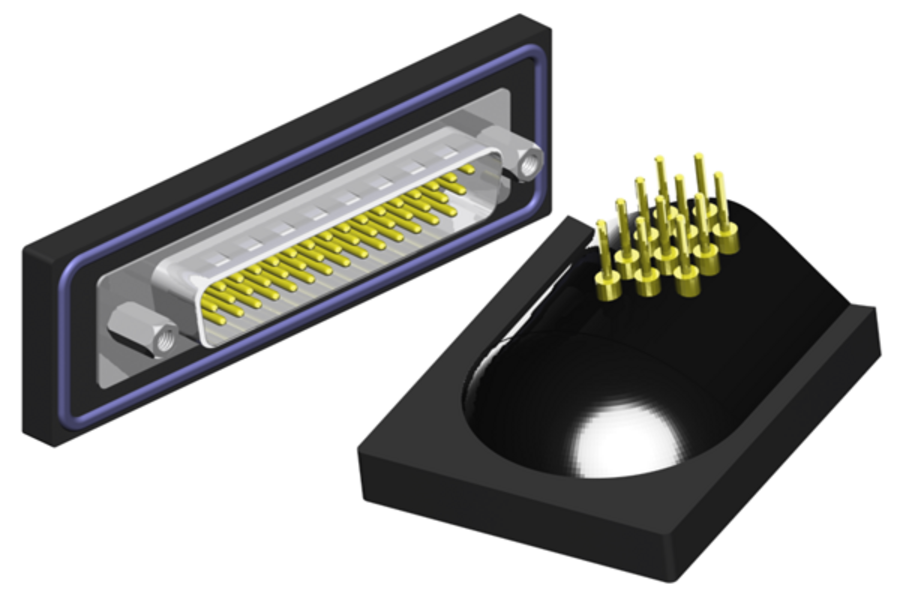

High density THT version -vertical-
High Density Through-hole version "female" and "male".
![High density THT version -vertical- High density THT version -vertical-](fileadmin/_processed_/c/a/csm_SHMSIP11T_ec48e89d08.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-SIP11-55/TX | |||
Male | SHM-xxx-SIP11-55/TX |

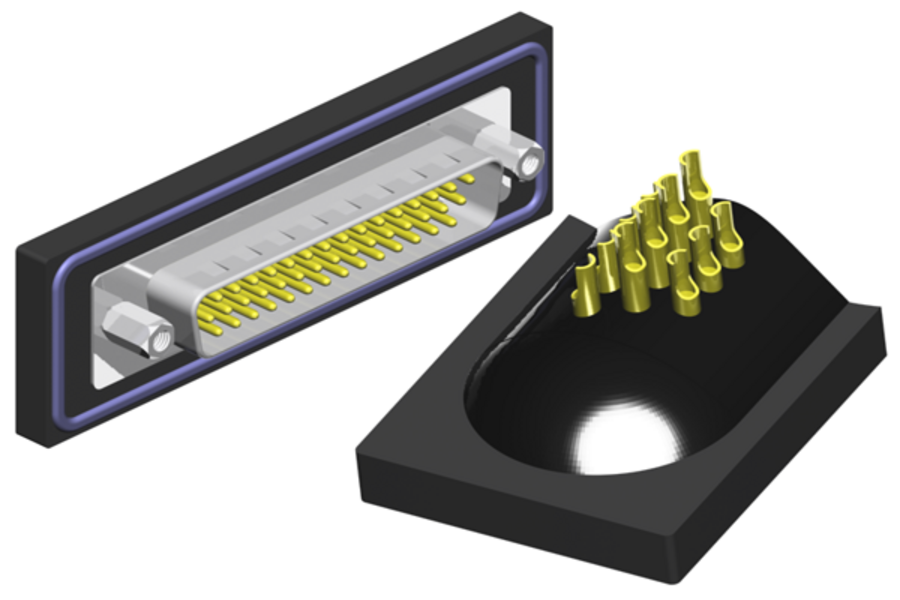

High Density "solder cup" version ( for hand soldering )
High Density hand soldering version in "female" and "male".
![High Density "solder cup" version ( for hand soldering ) High Density "solder cup" version ( for hand soldering )](fileadmin/_processed_/f/3/csm_SHMSIP01T_660797b337.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-SIP01-55/TX | |||
Male | SHM-xxx-SIP01-55/TX |

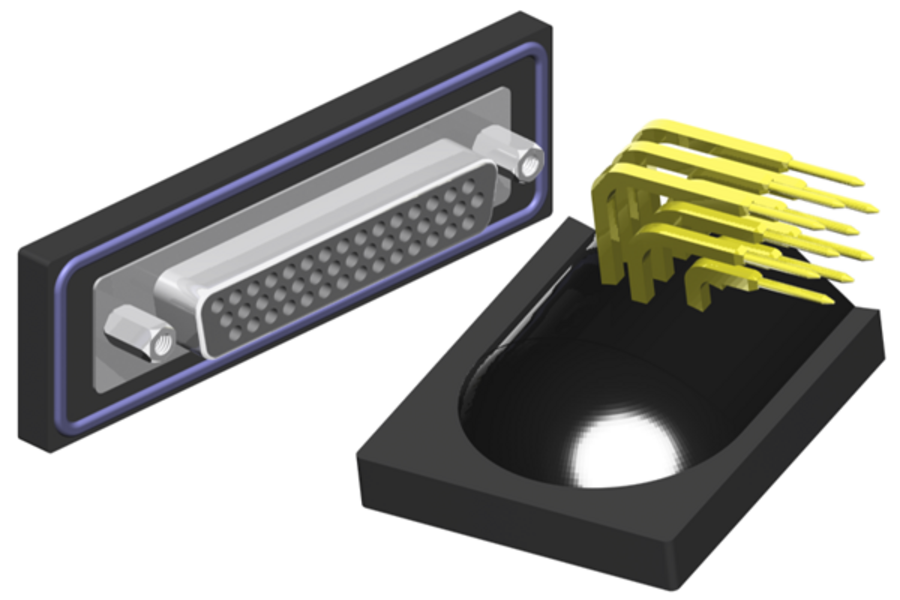

High Density THT version -90°- without mounting brackets
High Density Through-hole version in "female" and "male" horizontal without mounting brackets.
![High Density THT version -90°- without mounting brackets High Density THT version -90°- without mounting brackets](fileadmin/_processed_/4/3/csm_SHFFIP7L1_be409fb34f.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-FIP7-55/L1TXX | |||
Male | SHM-xxx-FIP7-55/L1TXX |

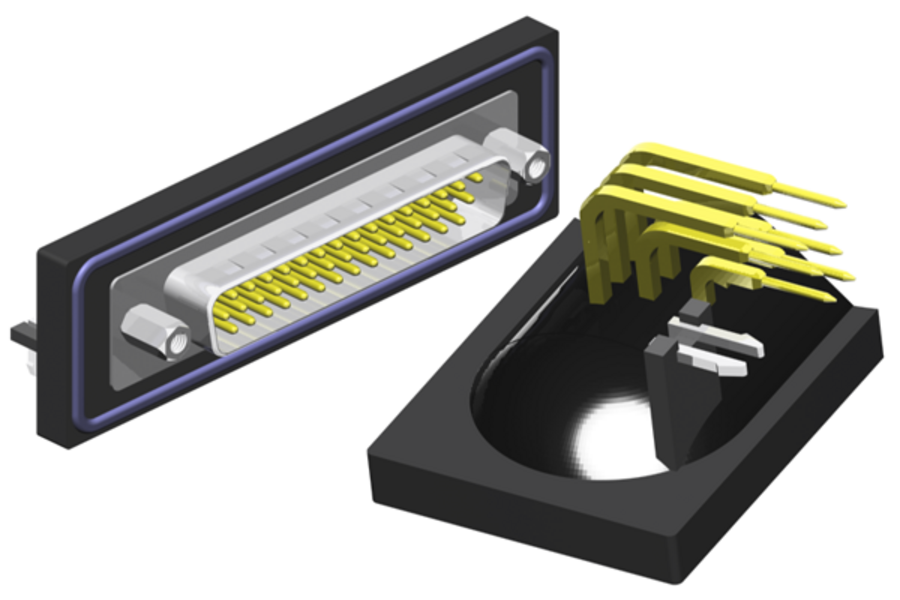

High Density THT version -90°- with mounting brackets
High Density Through-hole version in "female" and "male" horizontal with mounting brackets.
![High Density THT version -90°- with mounting brackets High Density THT version -90°- with mounting brackets](fileadmin/_processed_/5/8/csm_SHMFIP7B1_69f6b3ab59.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-FIP7-55/B1TXX | |||
Male | SHM-xxx-FIP7-55/B1TXX |
