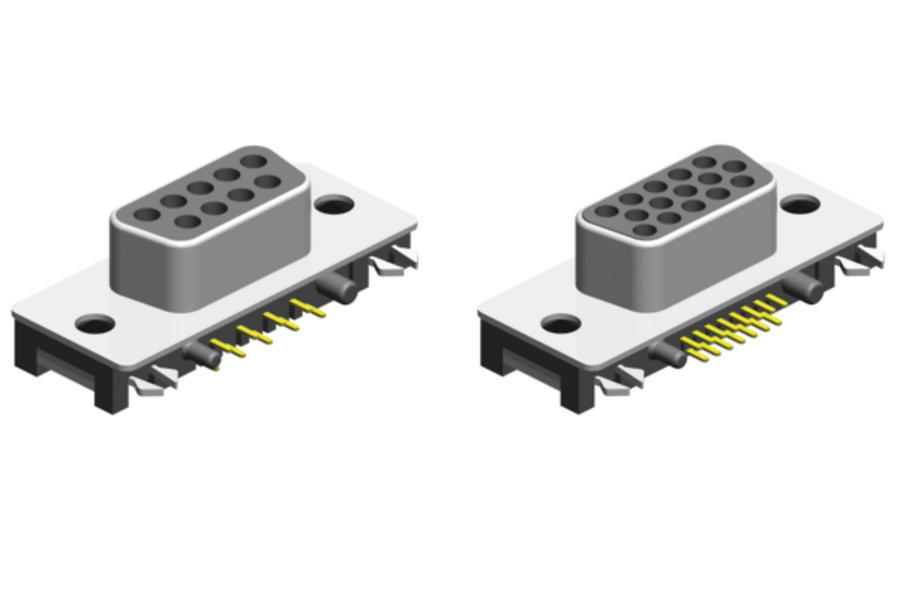

Ultra slim profile 90°- THT
Standard-type with a depth of only 4.30mm
"female" 9- and 25-pin
"male" 9-pin
"High Density"-type with a depth of only 4.30mm
"female" 15-pin
All versions available with "fork board lock" or "round board lock".
![Ultra slim profile 90°- THT Ultra slim profile 90°- THT](fileadmin/_processed_/7/a/csm_DS-06_03_A_17eb6d3a0c.png)
Version | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
9-pin (female) | SDF-009-US91-xx/XN | |||
9-pin (male) | SDM-009-US91F-xx/XN | |||
15-pin (female) | SDF-015-US91-xx/XN | |||
15-pin (Pin-in-Paste) | SHF-015-US98-xx/VXN | |||
25-pin (female) | SDF-025-US91F-xx/XN |

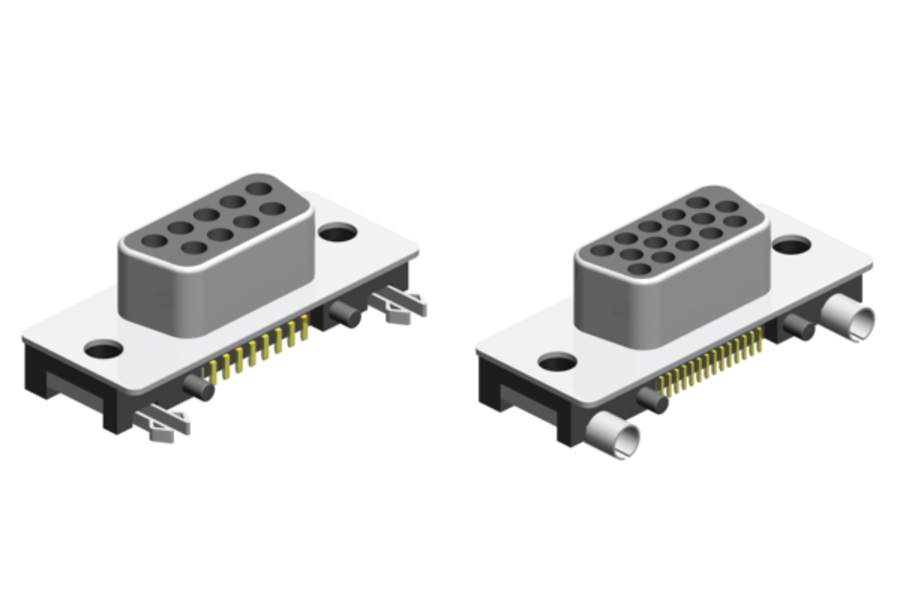

Ultra slim profile 90°- SMT
Standard-type with a depth of only 4.00mm
"female" 9-, 15- and 25-pin
"male" 9-pin
"High Density"-type with a depth of only 4.60mm
"female" 15-pin
All versions available as "Wave Solder"- or "Pin-In-Paste"-Technology.
![Ultra slim profile 90°- SMT Ultra slim profile 90°- SMT](fileadmin/_processed_/3/1/csm_DS-06_03_B_2dd568b715.png)
Version | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
9-pin (female) | SSF-009-U908-xx/X | |||
9-pin (male) | SSM-009-U908-xx/X | |||
15-pin (female) | SSF-015-HU98-xx/X | |||
25-pin (female) | SSF-025-U908-xx/X | |||
25-pin (male) | SSM-025-U908-xx/X |
