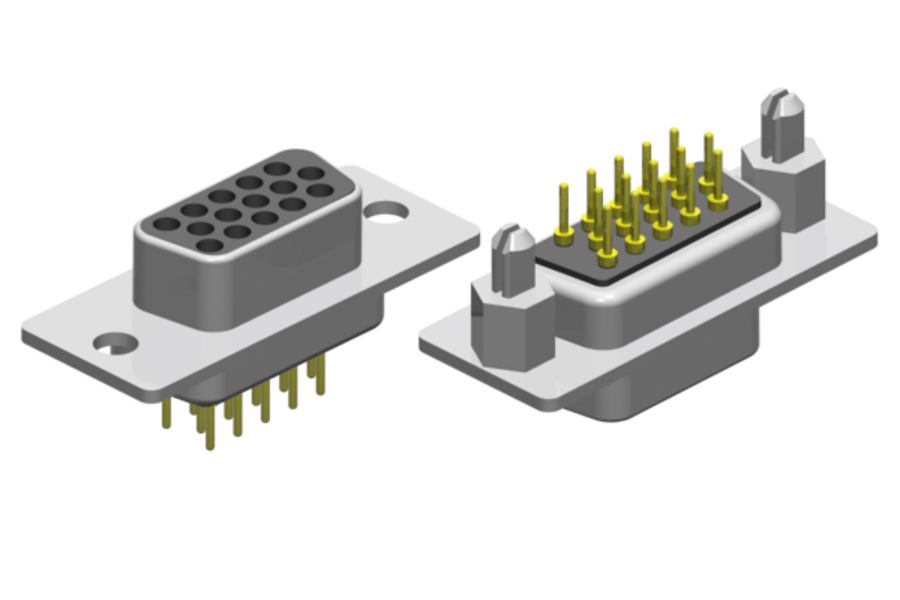

THT version -vertical- standard height
Through-hole soldering in "female" and "male", vertical with a board distance of 6.00mm up to the mounting collar.
You can choose between distance bolts and distance angles.
Available in 15-, 26-, 44- and 62-pin
![THT version -vertical- standard height THT version -vertical- standard height](fileadmin/_processed_/6/c/csm_DS-06_4_A_e211f1e942.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-S111-xx/XXX | |||
Male | SHM-xxx-S111-xx/XXX |

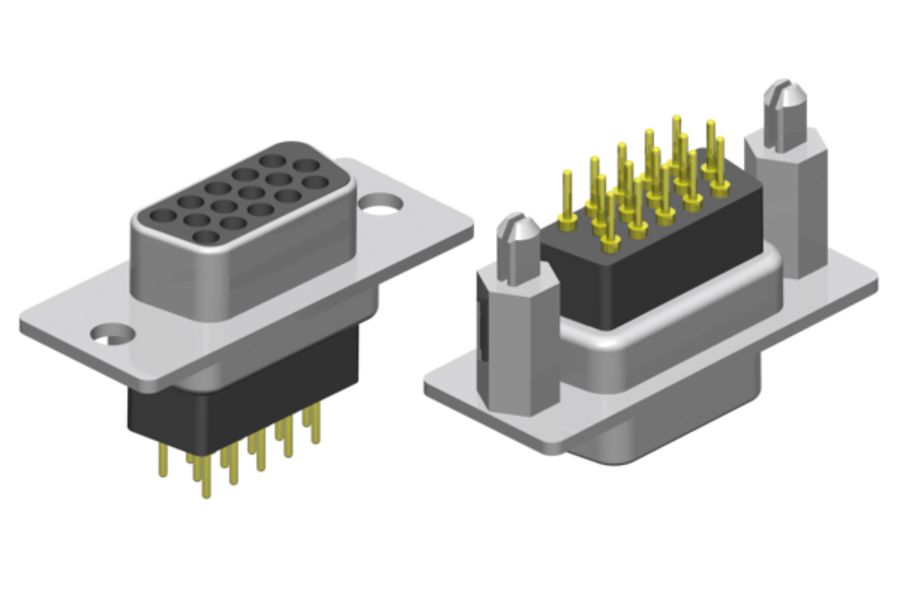

THT version -vertical- raised height
Through-hole soldering in "female" and "male", vertical with a board spacing of 9.60mm, 11.00mm, 12.70mm, 13.50mm up to the mounting collar.
Only available with distance bolts.
Available in 15-, 26-, 44- and 62-pin
![THT version -vertical- raised height THT version -vertical- raised height](fileadmin/_processed_/f/7/csm_DS-06_4_B_53f92269a4.png)
Type | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
Female | SHF-xxx-B111-xx/XXX | |||
Male | SHM-xxx-B111-xx/XXX |

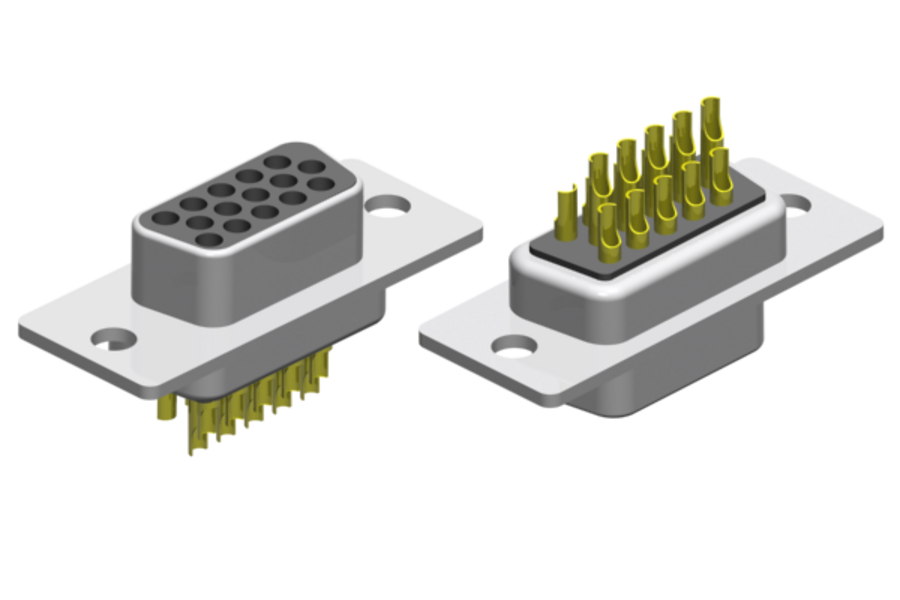

"solder cup" version ( for hand soldering )
Series: SHX-xxx-S101-xx/XX
Hand soldering type in "female" and "male".
You solder your cable yourself and provide it with a hood (see data sheet D-Sub accessories and hoods).
Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.
!["solder cup" version ( for hand soldering ) "solder cup" version ( for hand soldering )](fileadmin/_processed_/0/6/csm_DS-06_4_C_822360a114.png)

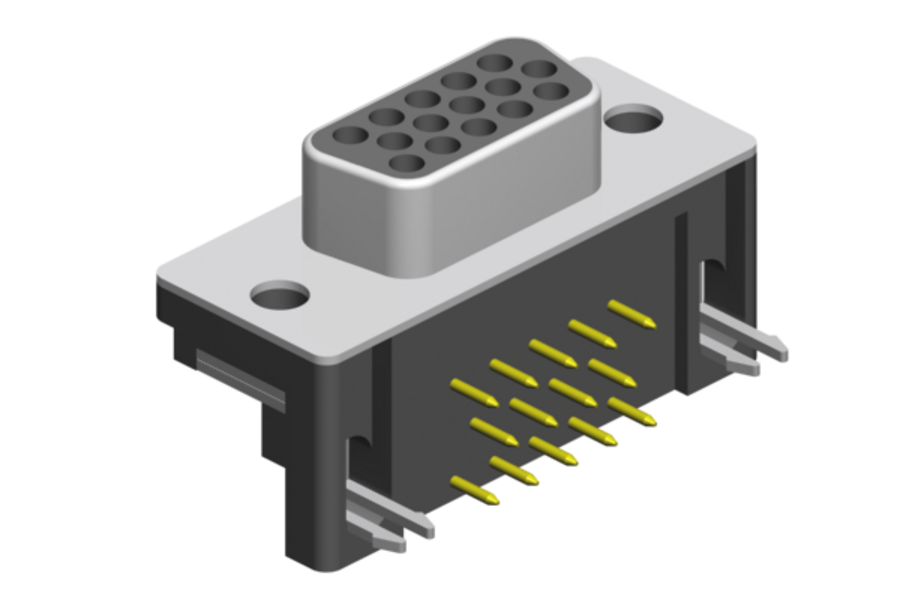

THT version -90°- closed body and color coded
Series: SHX-xxx-F900-xx/XX
Through-hole soldering in "female" and "male" horizontal for "Wave Solder" / "Pin-In-Paste" -technology. "Female" version also as "VESA" type with blue insulating body and recessed pin#9.
Available with flat or round "grounding board lock clip", or "grounding strap" with mounting hole.
Version
15-pin26-pin
44-pin
62-pinpin
Download
Datasheets
![THT version -90°- closed body and color coded THT version -90°- closed body and color coded](fileadmin/_processed_/a/e/csm_DS-06_4_D_28fd20ef8b.png)
