Rotary Switch "SMT" version
Series: DRD-xxx-XMZ

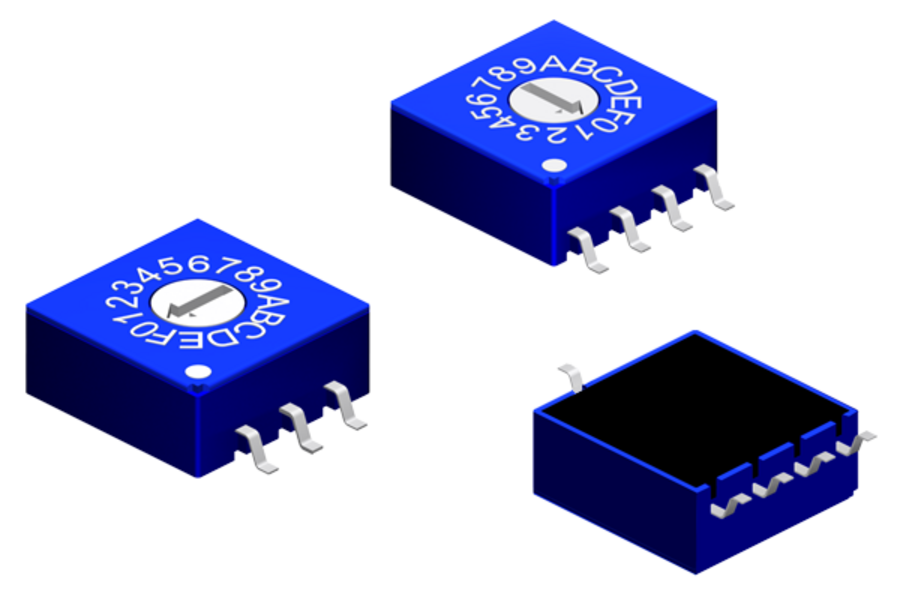

Small dimensions, side length 10.00mm and height after soldering only 5.00mm. Whether 3:3 or 1:4 pin-out, the switches with 8 and 10 switching positions are "binary decimal", with 16 positions "hexadecimal". The differences are characterized by different colors of the rotor.
Download
![Rotary Switch "SMT" version Rotary Switch "SMT" version](fileadmin/_processed_/3/4/csm_Rotary_Switch_SMT_3ddc9c7be3.png)
Rotary Switch "THT" version - vertical operation
Series: DRD-xxx-XRZ

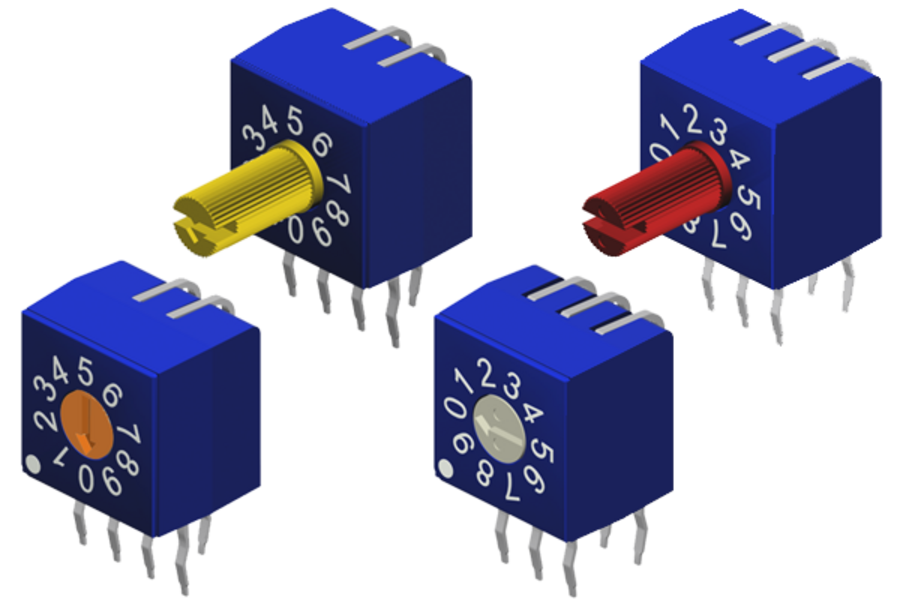

Small dimensions, side length 10.00mm and height after soldering only 5.40mm. You can choose between "Flat" and "Shaft" type. Whether 3:3 or 1:4 pin-out, the switches with 8 and 10 switching positions are "binary decimal", with 16 positions "hexadecimal". For identification, the rotor is white, red, yellow or orange.
![Rotary Switch "THT" version - vertical operation Rotary Switch "THT" version - vertical operation](fileadmin/_processed_/c/1/csm_Rotary_Switch_THT_Vertikale_28e1efca14.png)
Rotary Switch "THT" version - horizontal operation
Series: DRD-xxx-XSZ

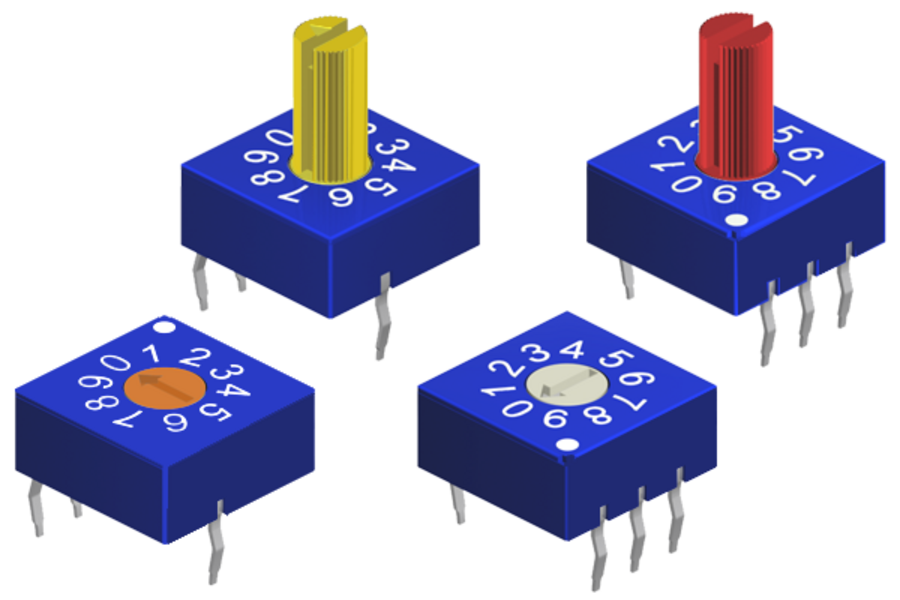

Small dimensions, side length 10.00mm and depth depending on type 6.90, 7.55, 9.24 and 9.89mm. You can choose between "Flat" and "Shaft" type. Whether 3:3 or 1:4 pin-out, the switches with 8 and 10 switching positions are "binary decimal", with 16 positions "hexadecimal". For identification, the rotor is white, red, yellow or orange.
Download
![Rotary Switch "THT" version - horizontal operation Rotary Switch "THT" version - horizontal operation](fileadmin/_processed_/c/d/csm_Rotary_Switch_THT_Horizontale_b764630e8e.png)
