SMT female version "Block Shape"
Series: MMF-xxx-HB50-xx/X
Mini-Mate™ "female" connectors, pitch 1.27mm interstitial (offset) in surface-mount technology as "block shape" version. Reverse polarity / twist protection by means of a notch on one side. To accommodate the polarization nose of the "male" connector, an additional hole (Ø1.80mm) is required in the PCB.
![SMT female version "Block Shape" SMT female version "Block Shape"](fileadmin/_processed_/7/b/csm_MMF_xxx_HB50_99_b9faf46ab7.png)

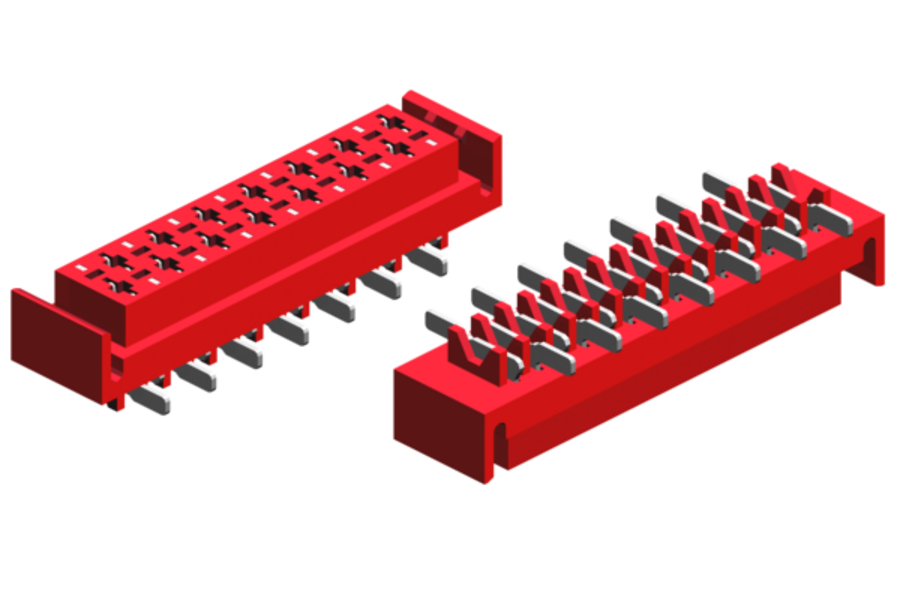

SMT female version "Latch Shape"
Series: MMF-xxx-HL50-xx/X
Mini-Mate™ "female" connector, pitch 1.27mm interstitial (offset) in surface-mount technology as "Latch Shape" version with snap-in lugs. Reverse polarity / twist protection by means of a notch on one side. To accommodate the polarization nose of the "male" connector, an additional hole (Ø1.80mm) is required in the PCB.
![SMT female version "Latch Shape" SMT female version "Latch Shape"](fileadmin/_processed_/8/3/csm_MMF_xxx_HL50_99_2866588e4b.png)

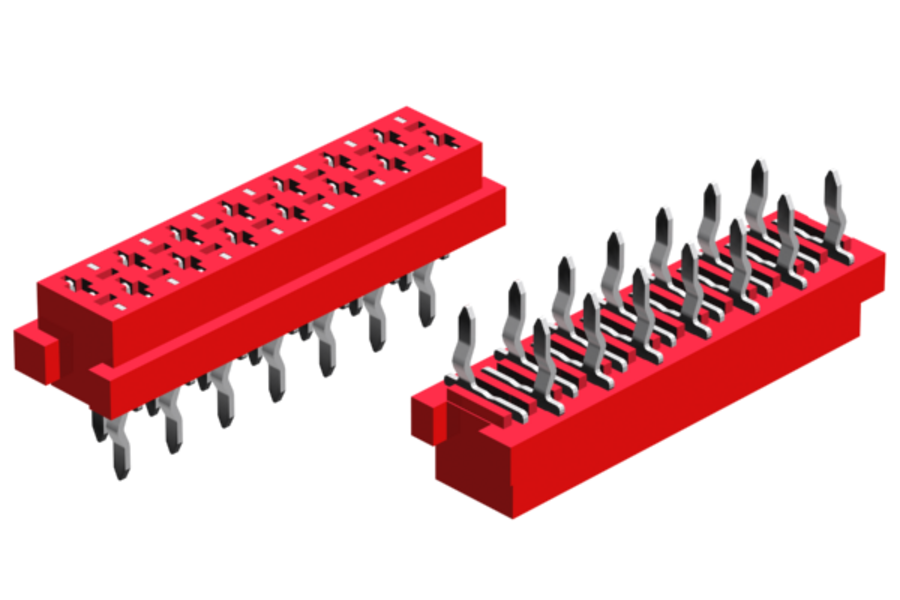

THT straight female version "Block Shape"
Series: MMF-xxx-SB50-99/X
Mini-Mate™ "female" connector, pitch 1.27mm interstitial (offset) in straight soldering technology as "block shape" version. Reverse polarity / twist protection by means of a notch on one side. To accommodate the polarization nose of the "male" connector, an additional hole (Ø1.80mm) is required in the PCB.
![THT straight female version "Block Shape" THT straight female version "Block Shape"](fileadmin/_processed_/2/c/csm_MMF_xxx_SB50_99_0b59f3b952.png)

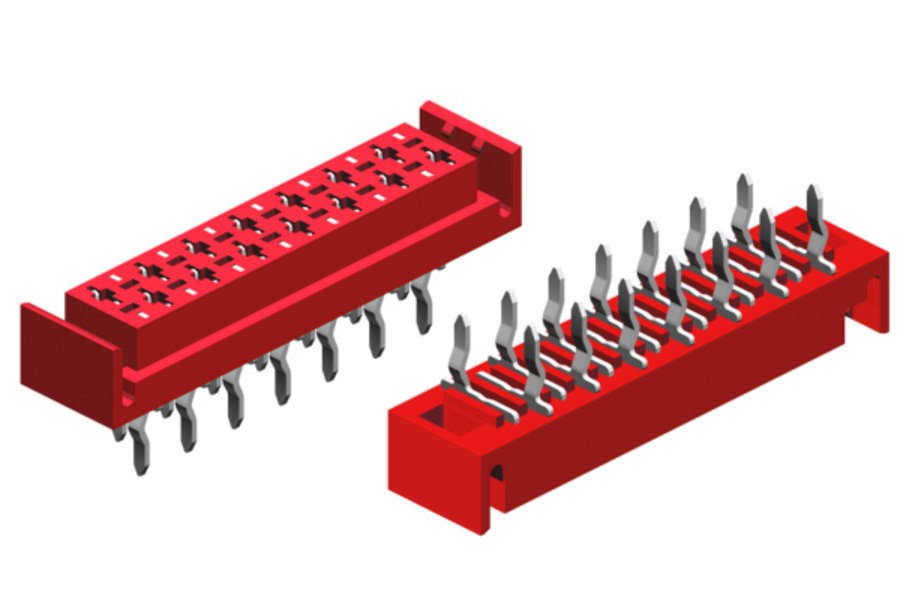

THT straight female version "Latch Shape"
Series: MMF-xxx-SL50-xx/X
Mini-Mate ™ "female" connector, pitch 1.27mm interstitial (offset) in straight soldering technology as "Latch Shape" version with snap-in lugs. Reverse polarity / twist protection by means of a notch on one side. To accommodate the polarization nose of the "male" connector, an additional hole (Ø1.80mm) is required in the PCB.
![THT straight female version "Latch Shape" THT straight female version "Latch Shape"](fileadmin/_processed_/6/e/csm_MMF_xxx_SL50_99_f5ead5cebc.png)

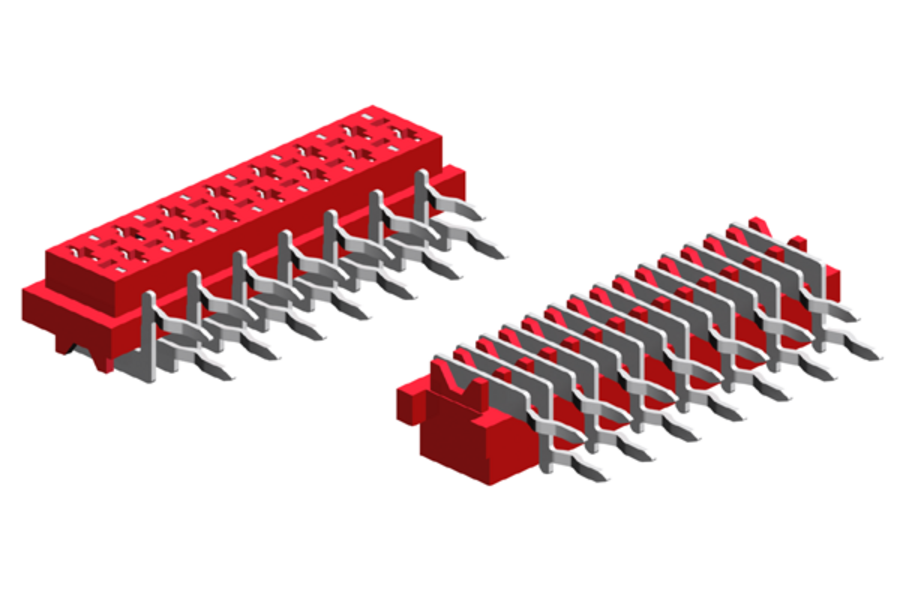

THT 90° female verision "Block Shape" / "Latch Shape"
Mini-Mate™ "female" connectors, pitch 1.27mm interstitial (offset) in horizontal through-hole soldering technology as "block shape" and "latch shape" version. Reverse polarity / twist protection by means of a notch on one side.
![THT 90° female verision "Block Shape" / "Latch Shape" THT 90° female verision "Block Shape" / "Latch Shape"](fileadmin/_processed_/e/3/csm_MMF_xxx_RB50_99_1d7b88f56f.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm (interstitial) / 2.54mm | MMF-xxx-RB50-xx | |||
1.27mm (interstitial) / 2.54mm | MMF-xxx-RL50-xx |

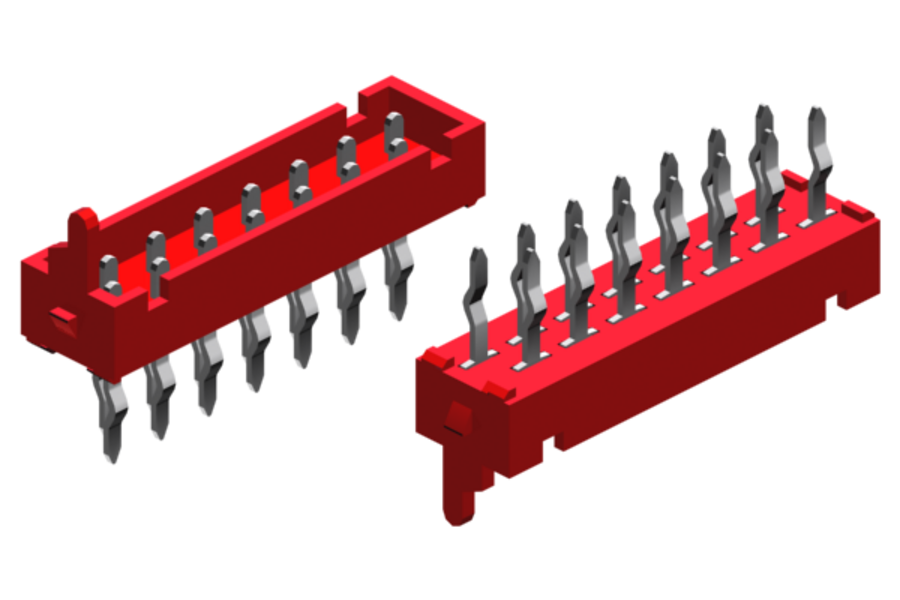

THT/SMT straight male version "Shrouded"
Mini-Mate™ "male" connectors, pitch 1.27mm interstitial (offset) in vertical through-hole soldering and SM technology. Ideal for connecting a Mini-Mate™ "female" connector to establish a board-to-board connection. A polarization nose is the polarity reversal protection.
![THT/SMT straight male version "Shrouded" THT/SMT straight male version "Shrouded"](fileadmin/_processed_/1/6/csm_MMM_xxx_SS50_99_f2950ff75d.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm (interstitial) / 2.54mm | MMM-xxx-SS50-xx | |||
1.27mm (interstitial) / 2.54mm | MMM-xxx-HS50-xx |
