ZIF - SMT FPC Type vertical
This vertical SMT ZIF (Zero Insertion Force) connector does not require any force to insert the Flexboard (FPC) or Flex Cable (FFC). The locking is done by hand. The force required for this purpose is extremely low.
Available Pitch: 0.50mm / 1.00mm
![ZIF - SMT FPC Type vertical ZIF - SMT FPC Type vertical](fileadmin/_processed_/6/3/csm_FCZ-xxx-VC5x-99-_PC-07a_91_A_1_ef9c4111a3.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
0.50mm | FCZ-xxx-VC5x-xx/RT | |||
1.00mm | FCZ-xxx-VZ100-xx/XT |
ZIF - SMT FPC Type horizontal
With this horizontal SMT ZIF (Zero Insertion Force) connector, there is no need to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this purpose is extremely low.
You can choose between "upper" or "lower" contact type.
Available Pitch: 0.50mm / 0.80mm / 1.00mm
![ZIF - SMT FPC Type horizontal ZIF - SMT FPC Type horizontal](fileadmin/_processed_/9/a/csm_FCZ-xxx-HC5x-xx_R-_PC-07a_92_A_1_e40ddeed53.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
0.50mm | FCZ-xxx-HC5x-xx/R | |||
1.00mm | FCZ-xxx-H10x-xx/R |

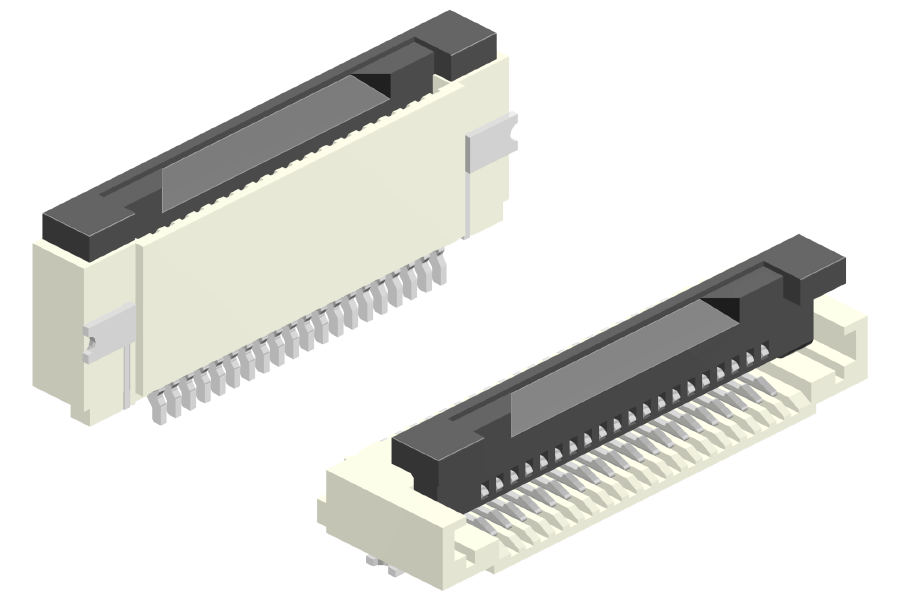

ZIF - SMT FPC Type horizontal "Easy-on"
Series: FCZ-xxx-H058-xx/X
This "easy-on" version, horizontal in SM technology, is particularly easy to use because the "Flex Board" (FPC) or the "Flex Cable" (FFC) is only inserted and then clamped with a flap.
![ZIF - SMT FPC Type horizontal "Easy-on" ZIF - SMT FPC Type horizontal "Easy-on"](fileadmin/_processed_/3/3/csm_FCZ-020-H058-_PC-07a_95-A_1_886a55b492.png)

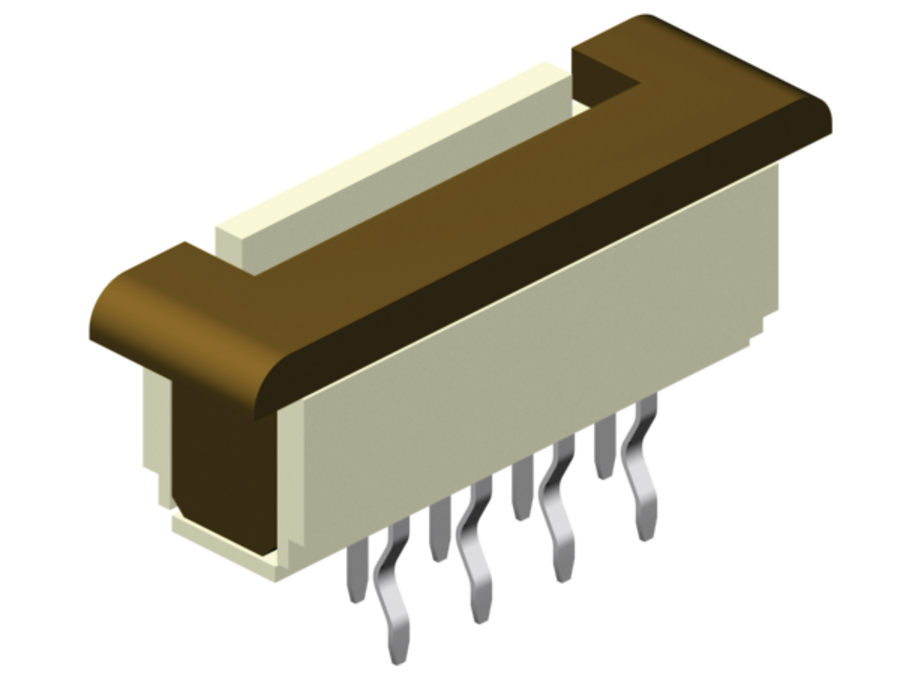

ZIF - THT FPC Type vertical
Series: FCZ-xxx-SL100-xx
With this vertical THT ZIF (Zero Insertion Force) connector, there is no need to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this purpose is extremely low.
Available Pitch: 1.00mm / 1.25mm
![ZIF - THT FPC Type vertical ZIF - THT FPC Type vertical](fileadmin/_processed_/5/9/csm_PC-07a_101_A_21ef099920.png)

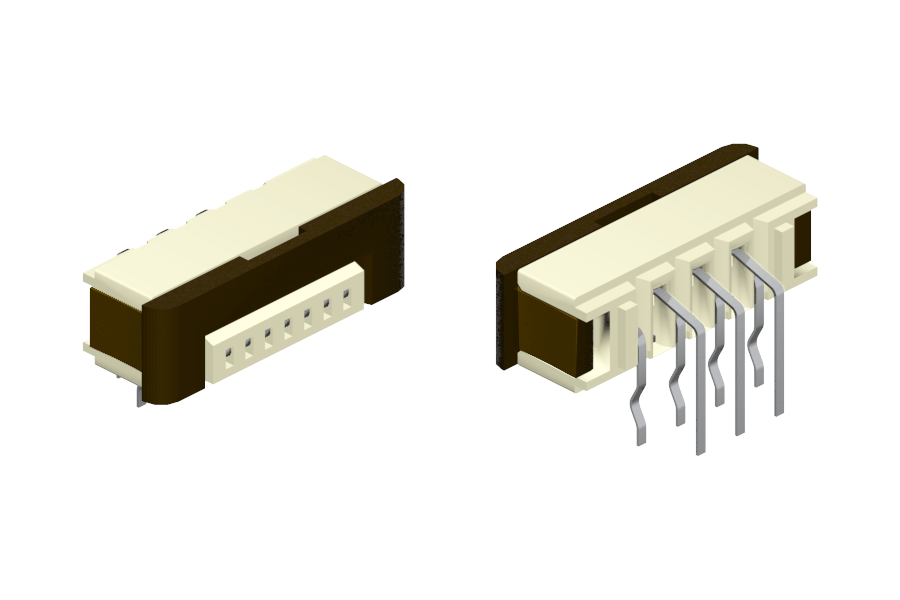

ZIF - THT FPC Type horizontal
Series: FCZ-xxx-RL10x-xx
With this vertical THT ZIF (Zero Insertion Force) connector, there is no need to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). The locking is done by hand. The force required for this purpose is extremely low.
Available Pitch: 1.00mm / 1.25mm
![ZIF - THT FPC Type horizontal ZIF - THT FPC Type horizontal](fileadmin/_processed_/e/0/csm_FCZ-xxx-RL101-99-_PC-07a_102_A_1_e862222272.png)

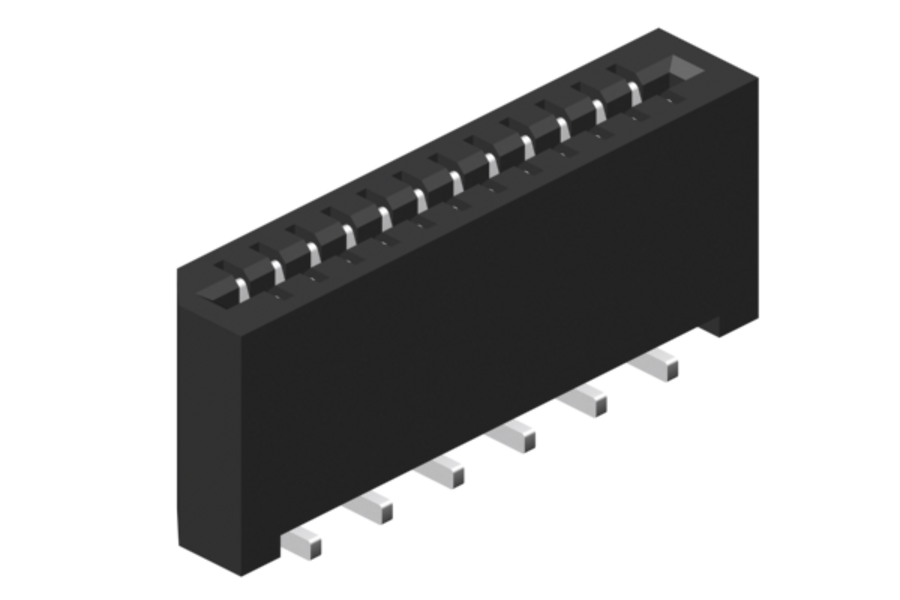

LIF - SMT FPC Type vertical
Series: FCL-xxx-V100-xx/XX
For this vertical SMT LIF (Low Insertion Force) connector, only a small amount of force is required to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). There is no additional locking in this version.
Available Pitch: 1.00mm / 1.25mm
![LIF - SMT FPC Type vertical LIF - SMT FPC Type vertical](fileadmin/_processed_/7/e/csm_PC-07a_103_A_69c3a63ef8.png)

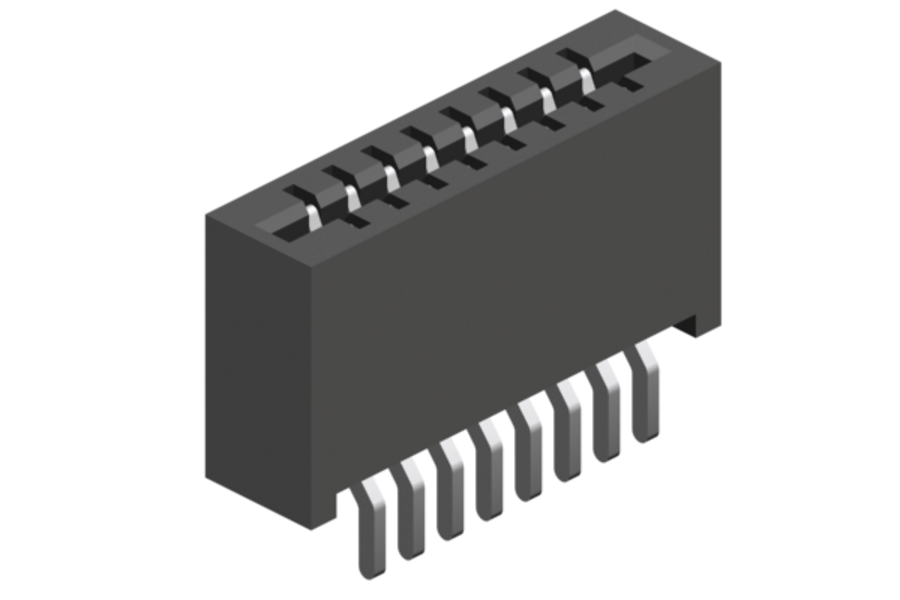

LIF - SMT FPC Type horizontal
With this horizontal SMT LIF (Low Insertion Force) connector, only a small amount of force is required to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). There is no additional locking in this version.
Available Pitch: 1.00m / 1.25mm
![LIF - SMT FPC Type horizontal LIF - SMT FPC Type horizontal](fileadmin/_processed_/8/c/csm_PC-06_6_D_a2257e2332.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.00mm | FCL-xxx-H100-xx/X | |||
1.25mm | FCL-xxx-H125-xx/X |

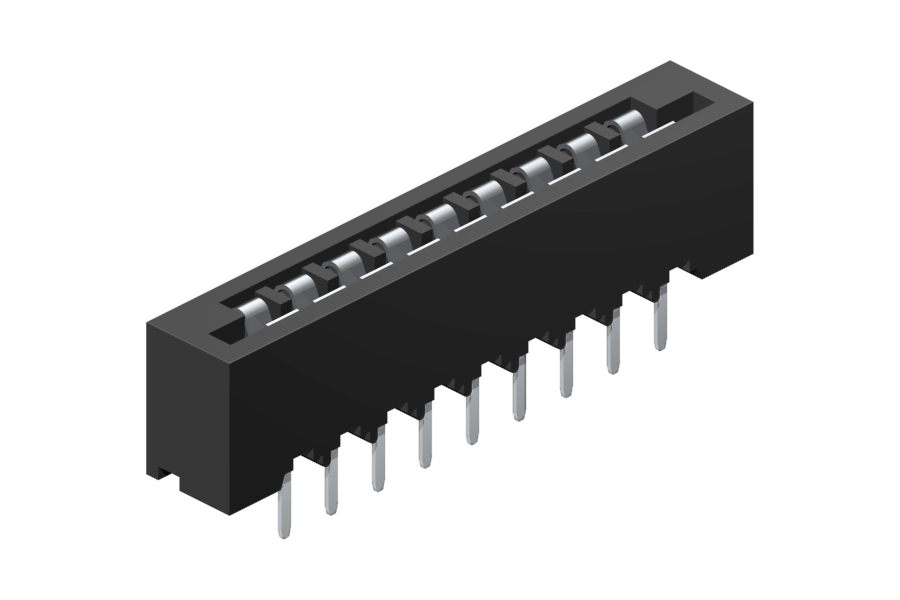

LIF - THT FPC/FFC Type vertical
For this vertical SMT LIF (Low Insertion Force) connector, only a small amount of force is required to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). There is no additional locking in this version.
The version with pitch 2.54mm is also suitable to contact flat ribbon cable (FRC).
Available Pitch: 1.00mm / 1.25mm / 2.54mm
![LIF - THT FPC/FFC Type vertical LIF - THT FPC/FFC Type vertical](fileadmin/_processed_/6/1/csm_FPC-009-S254-99-_PC-07a_111_A_1_53d1d52b7c.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.00mm | FCL-xxx-S100-xx | |||
1.25mm | FCL-xxx-S125-xx | |||
2.54mm | FPC-xxx-S254-xx |

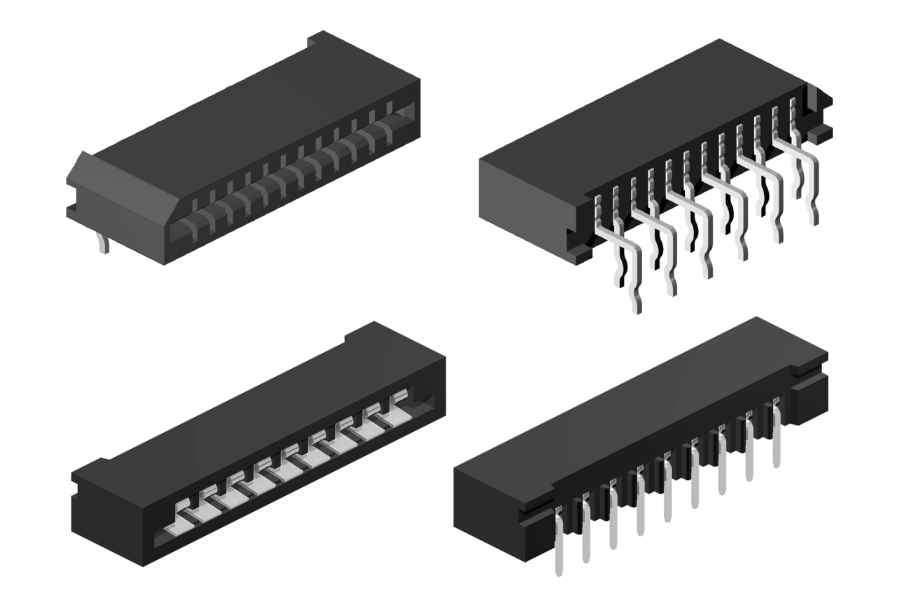

LIF - THT FPC/FFC Typ horizontal
For this horizontal SMT LIF (Low Insertion Force) connector, only a small amount of force is required to insert the "Flex Board" (FPC) or the "Flex Cable" (FFC). There is no additional locking in this version.
The version with pitch 2.54mm is also suitable to contact flat ribbon cable (FRC).
Available Pitch: 1.00mm / 1.25mm / 2.54mm
![LIF - THT FPC/FFC Typ horizontal LIF - THT FPC/FFC Typ horizontal](fileadmin/_processed_/d/8/csm_FCL-xxx-R100-99-_PC-07a_106_A_1_2ac47af164.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.00mm | FCL-xxx-R100-xx | |||
1.25mm | FCL-xxx-R125-xx | |||
2.54mm | FPC-xxx-R254-xx |
