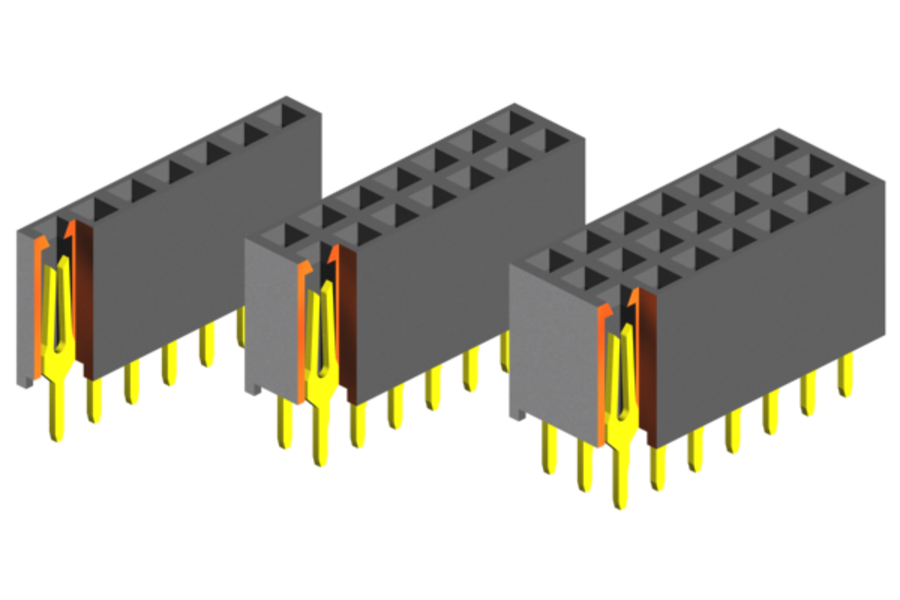

Through-hole soldering (THT) - vertical female headers
Single row, double row and three rows in different pitch. Different heights give you great freedom in development.
Available Pitch: 1.27mm / 2.00mm / 2.54mm
![Through-hole soldering (THT) - vertical female headers Through-hole soldering (THT) - vertical female headers](fileadmin/_processed_/4/a/csm_PC-06_4_A_37cebf5ef4.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm | BL2-xxx-Sxxx-xx/11 | |||
1.27mm x 2.54mm | BLx-xxx-Sxxx-xx/1 | |||
2.00mm | BLx-xxx-Sxxx-xx/2 | |||
2.00mm | BLx-xxx-SH635-xx/2 | |||
2.54mm | BLx-xxx-S842-xx | |||
2.54mm | BLx-xxx-S570-xx | |||
2.54mm | BFx-xxx-Sxxx-xx |

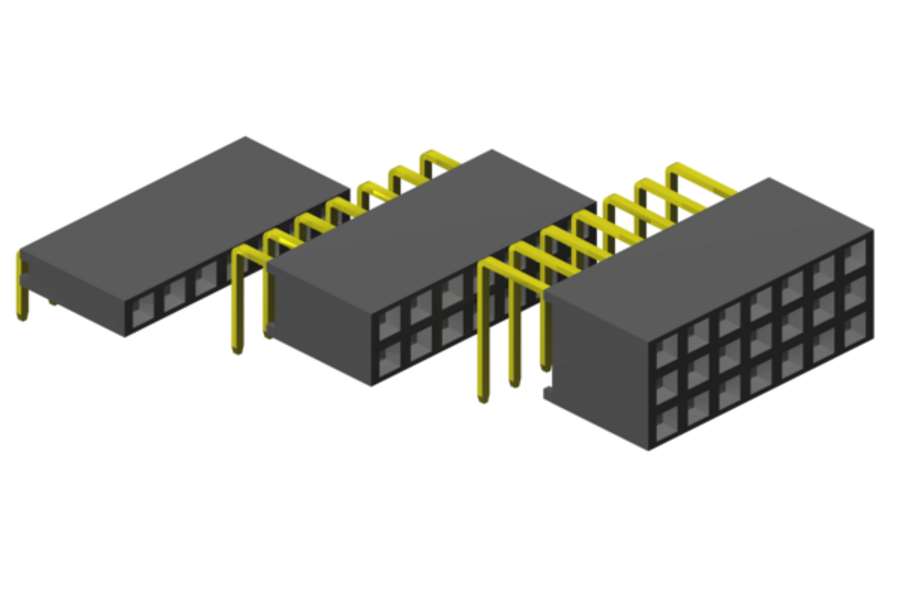

Through-hole soldering (THT) - horizontal female headers
Single row, double row and three rows in different pitch. In addition to a "fork contact", we offer square folded contacts with contact points of different depth.
Available Pitch: 1.27mm / 2.00mm / 2.54mm
![Through-hole soldering (THT) - horizontal female headers Through-hole soldering (THT) - horizontal female headers](fileadmin/_processed_/5/c/csm_PC-06_4_B_a2821fdfbd.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm | BL2-xxx-R430-xx/11 | |||
2.00mm | BLx-xxx-Rxxx-xx/2 | |||
2.00mm | BLx-xxx-RH635-xx/2 | |||
2.54mm | BLx-xxx-R842-xx | |||
2.54mm | BLx-xxx-R570-xx | |||
2.54mm | BFx-xxx-R500-xx |

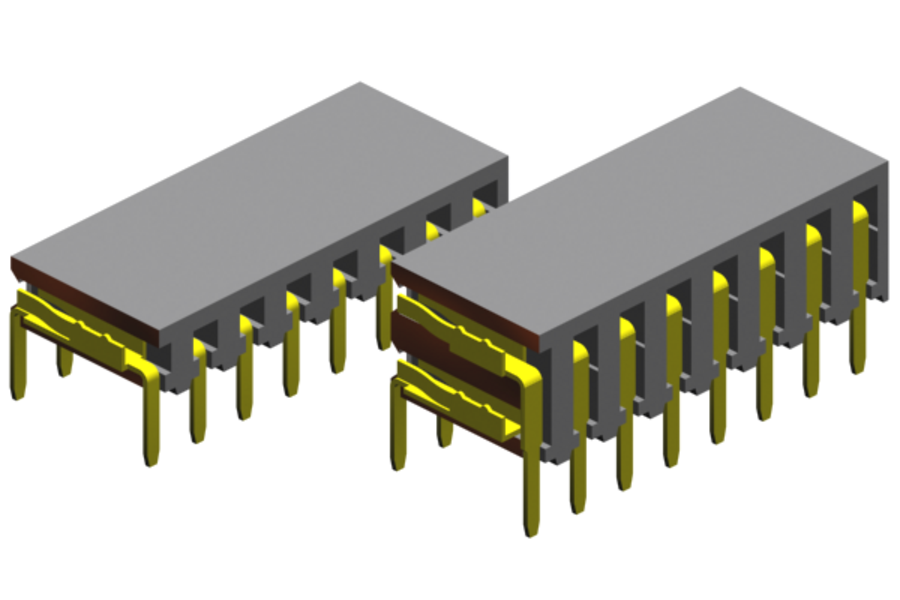

Through-hole soldering (THT) - "side entry" female header
Single row and double row in various pitch. Reliable contact and the greatest possible stability of the pin headers in the socket thanks to folded contacts.
Available Pitch: 1.27mm / 2.00mm / 2.54mm
![Through-hole soldering (THT) - "side entry" female header Through-hole soldering (THT) - "side entry" female header](fileadmin/_processed_/9/2/csm_PC-06_4_J_8194df6522.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm | BH2-xxx-R345-xx/11 | |||
2.00mm | BH2-xxx-R450-xx/2 | |||
2.54mm | BHx-xxx-R850-xx |

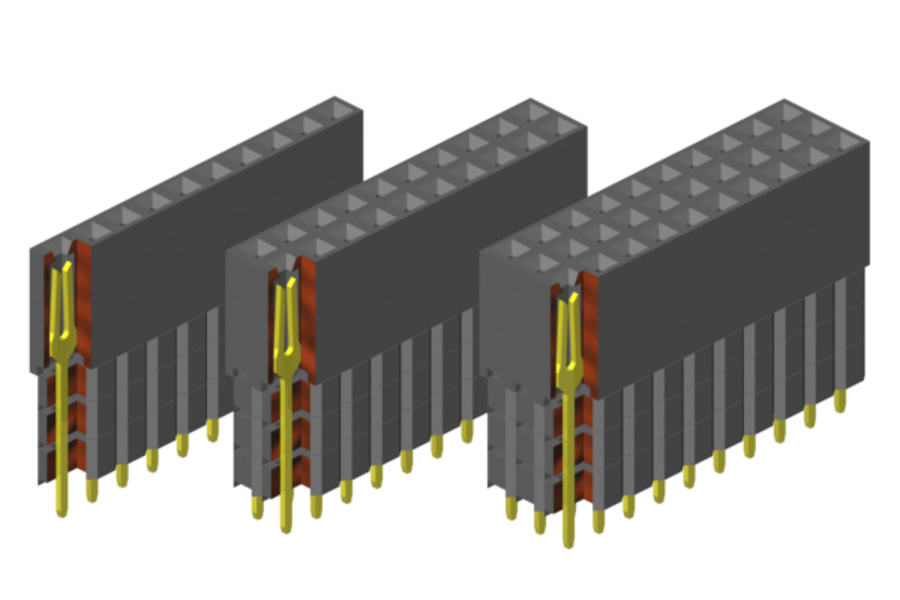

Through-hole soldering (THT) - vertical female header "elevated" version
Single row, double row and three rows in different pitch. Standard heights from 11.00mm to 19.00mm give you great freedom in development. Further, customer-specific dimensions on request possible.
Available Pitch: 2.00mm / 2.54mm
![Through-hole soldering (THT) - vertical female header "elevated" version Through-hole soldering (THT) - vertical female header "elevated" version](fileadmin/_processed_/c/f/csm_PC-06_4_E_bd86011345.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
2.00mm | BEx-xxx-S8xx-xx/2 | |||
2.54mm | BEx-xxx-S1xx-xx |

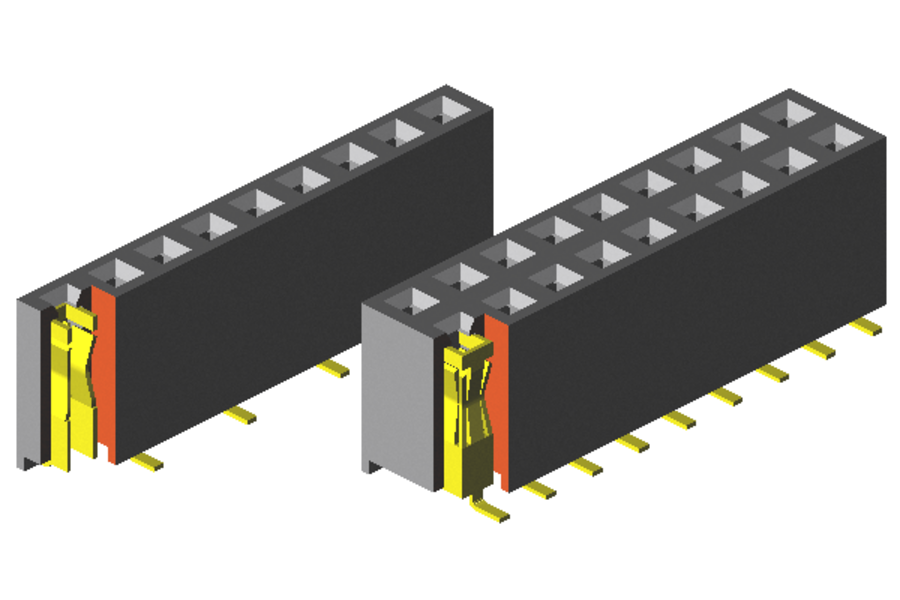

Surface-mount soldering (SMT) - vertical female headers
Single row, double row and three rows in different pitch. Different heights give you great freedom in development.
Available Pitch: 1.27mm / 2.00mm / 2.54mm
![Surface-mount soldering (SMT) - vertical female headers Surface-mount soldering (SMT) - vertical female headers](fileadmin/_processed_/a/0/csm_PC-06_4_C_e20b4549c2.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm | BS1-xxx-H45x-xx/11XX | |||
1.27mm | BS2-xxx-H45x-xx/11X | |||
1.27mm x 2.54mm | BS2-xxx-H600-xx/1X | |||
2.00mm | BSx-xxx-H43x-xx/2X | |||
2.54mm | BSx-xxx-Hxxx-xx/X |

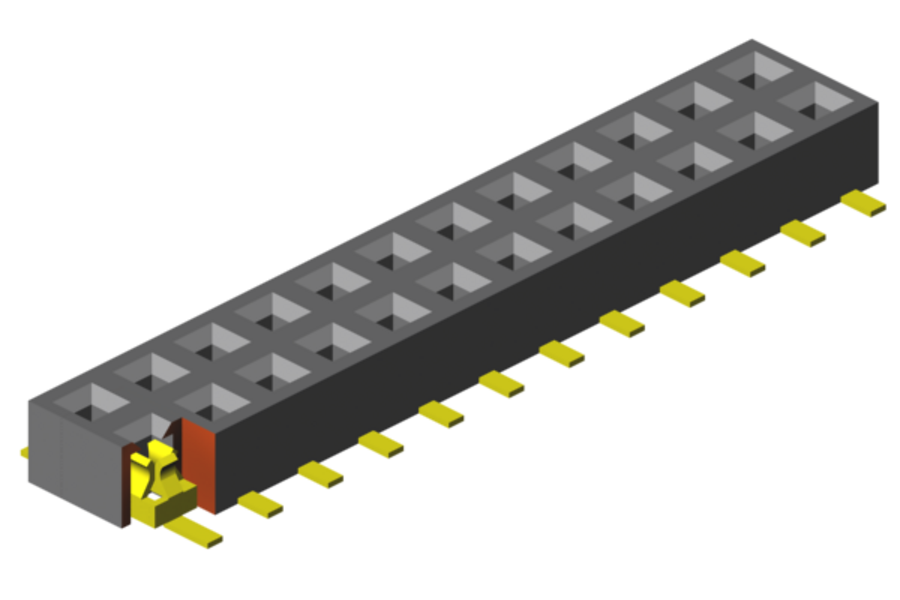

Surface-mount soldering (SMT) - vertical female header "low profile"
Single row and double row in various pitch. Construction heights between 4.50mm and 2.00mm reduce your board-to-board distance to a minimum. As "top-" and "bottom-entry", thus also suitable for the through-insertion of the pin headers (boards "thread technology").
Available Pitch: 1.00mm / 1.27mm / 2.00mm / 2.54mm
![Surface-mount soldering (SMT) - vertical female header "low profile" Surface-mount soldering (SMT) - vertical female header "low profile"](fileadmin/_processed_/e/3/csm_PC-06_4_F_e8b5f2373c.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.00mm | BS2-xxx-H222-xx/00X | |||
1.27mm | BS2-xxx-H36x-xx/11X | |||
1.27mm | BS1-xxx-Xxxx-xx/11XX | |||
1.27mm | BS2-xxx-TB22-xx/11X | |||
2.00mm | BS1-xxx-TB22-xx/2X | |||
2.00mm | BS2-xxx-TBxx-xx/2X | |||
2.54mm | BS2-xxx-TB365-xx/X |

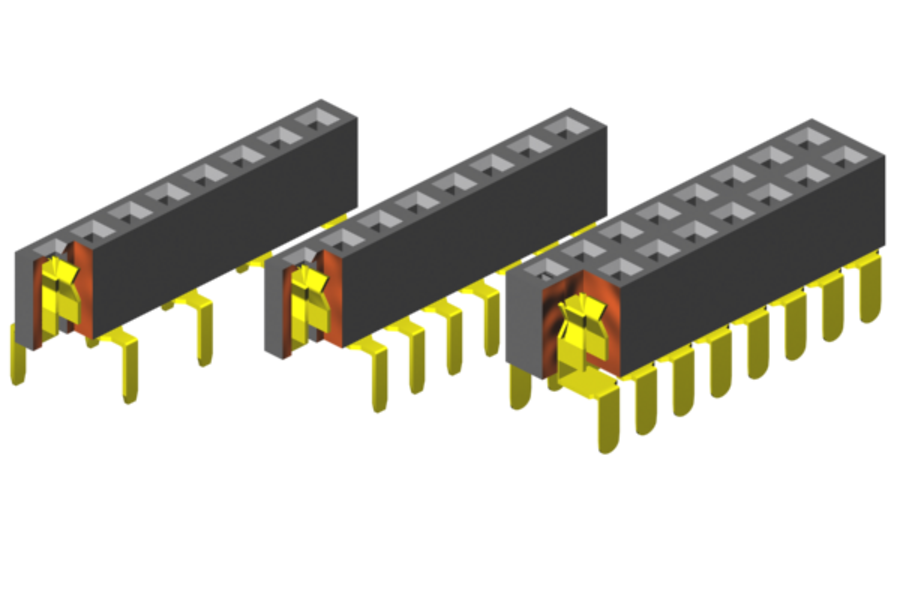

Through-hole soldering (THT) - "dual entry" female headers "low profile"
Single row and two rows in various pitch. Reliable contact with the "contact through" of pin headers (boards "threading technique") thanks to folded contacts with three contact points.
Available Pitch: 2.00mm / 2.54mm
![Through-hole soldering (THT) - "dual entry" female headers "low profile" Through-hole soldering (THT) - "dual entry" female headers "low profile"](fileadmin/_processed_/0/5/csm_PC-06_4_G_9c5d0b9144.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
2.00mm | BBx-xxx-S43x-xx/2 | |||
2.54mm | BBx-xxx-S50x-xx |

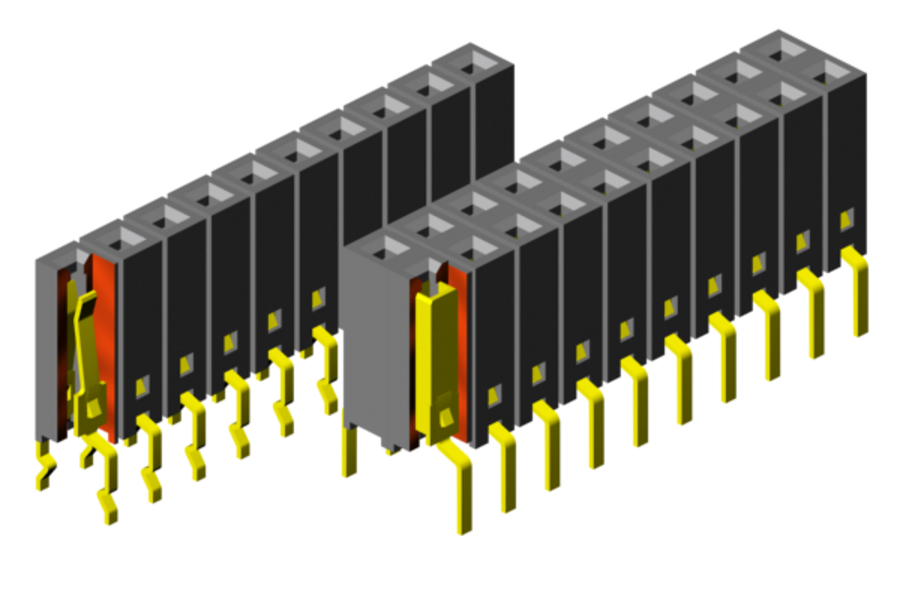

Through-hole soldering (THT) - "dual entry" female headers
Series: BBx-xxx-B850-xx
Single row and double row in pitch 2.54mm with a height of 8.50mm. Reliable contact with the "contact through" of pin headers (boards "threading technique") thanks to folded contacts with three contact points.
![Through-hole soldering (THT) - "dual entry" female headers Through-hole soldering (THT) - "dual entry" female headers](fileadmin/_processed_/0/4/csm_Dual-entry_Type_d10b9d384d.png)

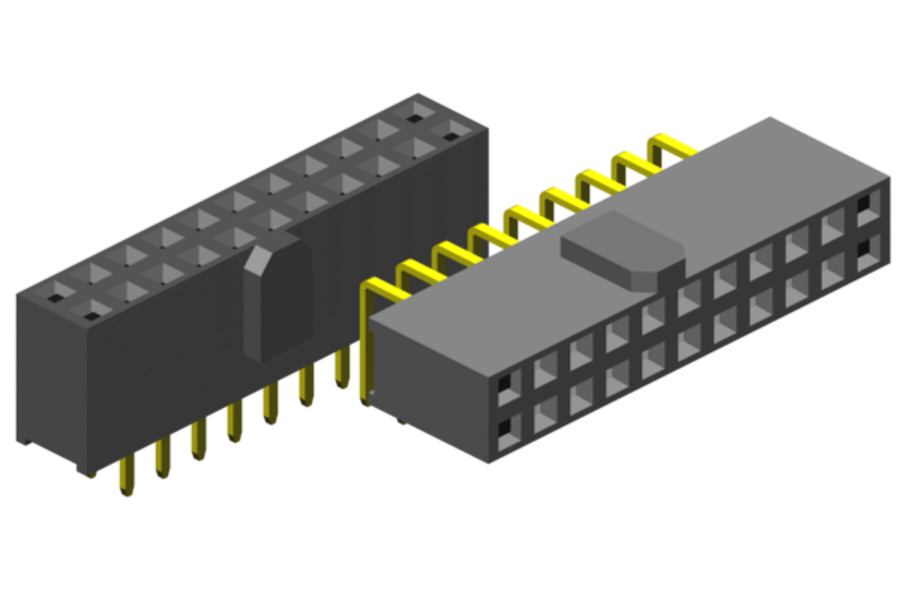

Through-hole soldering (THT) - female headers for box header
Series: BW2-xxx-X850-xx/P
Matching with the E-tec box header of the series -S920- and -R920- for a secure connection. Twist-proof and coded. Horizontal and vertical in pitch 2.54mm.
![Through-hole soldering (THT) - female headers for box header Through-hole soldering (THT) - female headers for box header](fileadmin/_processed_/8/6/csm_PC-06_4_I_753da2d8f7.png)

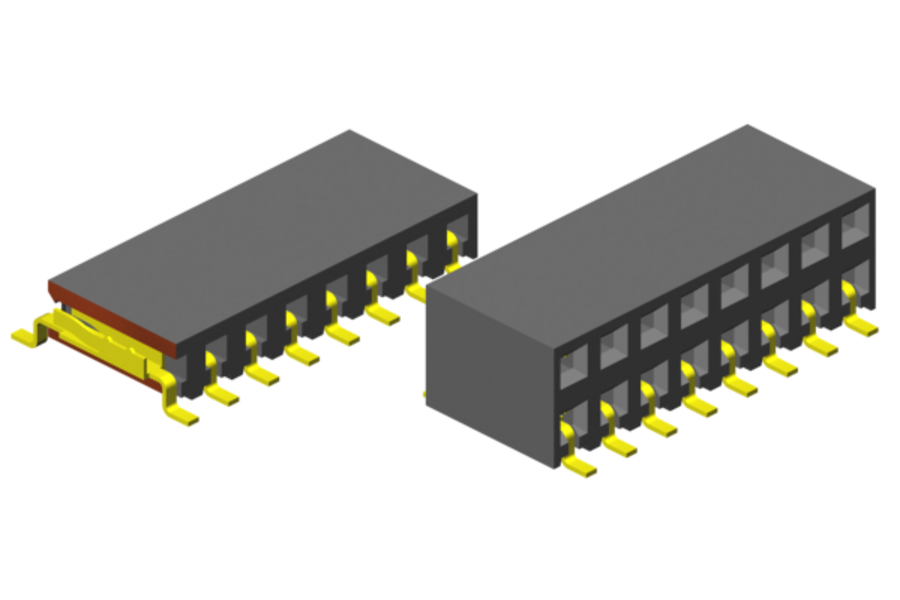

Surface-mount soldering (SMT) - "side entry" female headers
Single row and double row in various pitch. Reliable contact and the greatest possible stability of the pin headers in the socket thanks to folded contacts.
Available Pitch: 1.27mm / 2.00mm / 2.54mm
![Surface-mount soldering (SMT) - "side entry" female headers Surface-mount soldering (SMT) - "side entry" female headers](fileadmin/_processed_/f/0/csm_PC-06_4_K_379d0e3ba5.png)
Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
---|---|---|---|---|
1.27mm | BS2-xxx-R345-xx/X | |||
2.00mm | BS2-xxx-R500-xx/2X | |||
2.54mm | BSx-xxx-R390-xx/X |

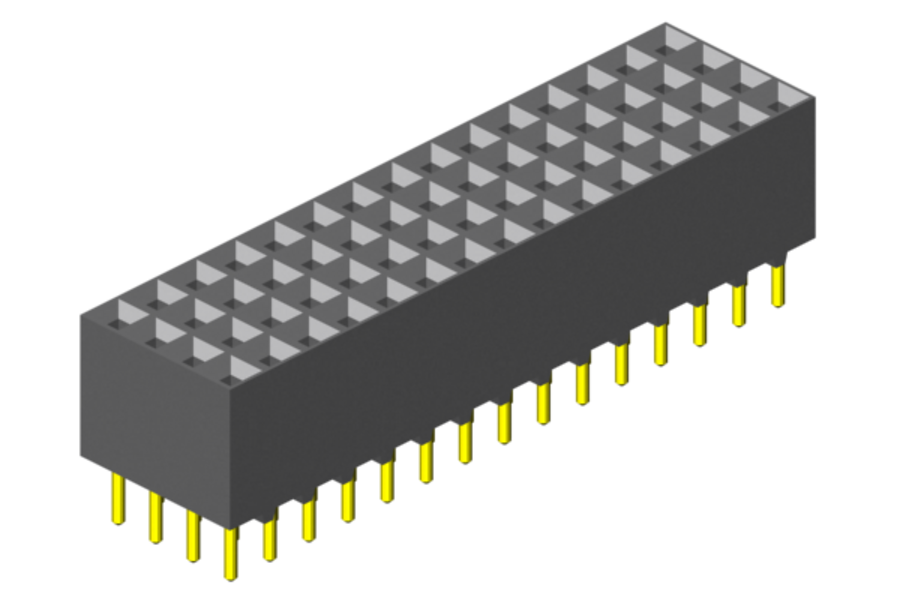

Through-hole soldering (THT) - vertical female header PC 104+ version
Series: BL4-xxx-S630/x-xx/2
4-row female header pitch 2.00mm in "low" and "high" profiles. Designed for "board-to-board" connections at the smallest distance. Available with "standoff's" for better PCB cleaning after soldering.
![Through-hole soldering (THT) - vertical female header PC 104+ version Through-hole soldering (THT) - vertical female header PC 104+ version](fileadmin/_processed_/5/b/csm_PC-06_4_D_54a797c177.png)
